Description
Parameters and specifications

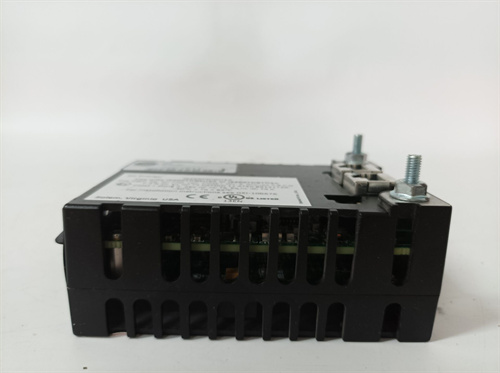

Type: Discrete input/Output (PDIO) module
Number of entries: 24
Input type: dry contact
Input signal level: 24 V DC
Output quantity: 12
Output type: Relay output
Output signal level: 24 V DC
Rated current: 10 A
Rated voltage: 250 V AC/DC
Communication interface: Two Ethernet ports (100Base-TX)
Power supply: 24V DC
Minimum rated voltage: 27.4 VDC, rated voltage is 28.0 VDC
Size and weight
Size:
Depending on the source, there are two possible sizes:
230mm x 170mm x 85mm
112 mm x 57 mm x 127 mm
Weight:
2 kilograms
0.4kg or 0.8kg
trait
High performance and flexibility: Provides high performance and flexible I/O capabilities for distributed control systems.
Ethernet connection: Equipped with two Ethernet ports to support network communication.
Safety certification: May include CE, UL, CSA, C-Tick, RoHS and other certifications
