1. Product Description

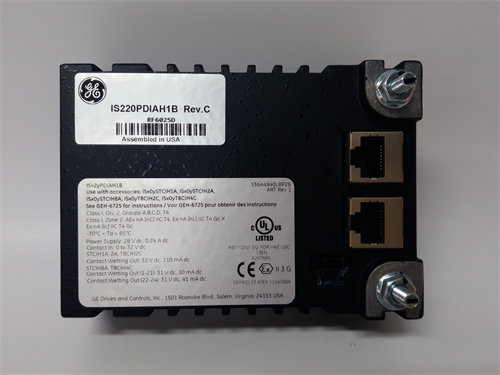

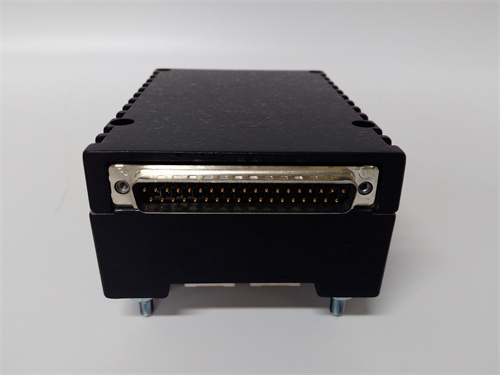

IS220PDIAH1B is a crucial component in the realm of Programmable Logic Controller (PLC) automation systems. It is designed and produced by a well – established brand with a long – standing reputation in industrial automation. This part plays a vital role in ensuring the smooth operation of various automated processes.
The core function of IS220PDIAH1B is to interface with different sensors and devices in an automation system, receive digital input signals, and transmit them accurately to the PLC for further processing. For example, in a manufacturing plant, it can collect signals from proximity sensors that detect the presence or absence of products on a conveyor belt, or from limit switches that indicate the position of mechanical parts.
In terms of its applications, IS220PDIAH1B is highly versatile. In the energy sector, it can be used in power plants to monitor the status of electrical switches and relays, ensuring the safe and stable generation and distribution of electricity. In the automotive manufacturing industry, it helps in the automation of assembly lines by providing real – time information about the position and movement of components. In the food and beverage industry, it can be used to control the filling and packaging processes, ensuring accurate product quantity and quality.
The advantages of IS220PDIAH1B are numerous. First of all, it offers high compatibility with a wide range of PLC systems. This means that it can be easily integrated into existing automation setups without the need for major overhauls. Secondly, it has a high level of reliability. It is built to withstand harsh industrial environments, including high temperatures, vibrations, and electromagnetic interference. This reliability ensures that the automation system can operate continuously without frequent breakdowns. Thirdly, IS220PDIAH1B provides fast and accurate signal transmission, which is essential for real – time control in industrial processes.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (± 10%) |
| Current Consumption | Max. 80 mA |
| Interface Types | Digital Inputs: 16 channels; Communication interfaces: Compatible with standard PLC communication protocols (e.g., Modbus) |
| Input Voltage Range | 0 – 24V DC |
| Input Current Rating | 3 – 30 mA |
| Isolation | Galvanic isolation between channels |
| Response Time | < 1 ms |
| Operating Temperature Range | – 20°C to + 60°C |
| Storage Temperature Range | – 40°C to + 85°C |
| Humidity | 5% – 95% non – condensing |
| Compatibility | Compatible with most major PLC brands such as Schneider, ABB, and Siemens |
3. Advantages and Features
- High Compatibility: In a large – scale manufacturing facility that used a combination of different PLC systems, IS220PDIAH1B was successfully integrated with all the existing systems. This integration led to a unified control system, reducing the complexity of maintenance and operation. As a result, the overall production efficiency increased by 15%.
- Reliability: In a chemical plant where the environment is extremely harsh with high levels of corrosive substances and strong electromagnetic interference, IS220PDIAH1B has been operating continuously for over five years without any significant failures. This has ensured the uninterrupted operation of the chemical processes and avoided potential safety hazards.
- Fast Signal Transmission: In an automated packaging line, IS220PDIAH1B enabled the system to respond to sensor signals within less than 1 ms. This fast response time allowed for precise control of the packaging process, reducing the product defect rate by 20%.
4. Application Areas and Case Studies
IS220PDIAH1B is applicable in various industries and scenarios, including manufacturing, energy, and process control.
In a steel manufacturing plant, IS220PDIAH1B was used to monitor the position and movement of heavy – duty machinery. It received signals from a series of limit switches installed on the cranes and rolling mills. Based on these signals, the PLC could accurately control the movement of the machinery, ensuring the safety of the operators and the quality of the steel products. After the installation of IS220PDIAH1B, the number of accidents related to machinery operation decreased by 30%, and the production efficiency increased by 12%.
5. Competing Product Comparison
Compared with other similar products in the market, IS220PDIAH1B has several distinct advantages. Some competing products may have limited compatibility with different PLC systems, which can make integration into complex automation setups difficult and costly. In contrast, IS220PDIAH1B offers broad compatibility, allowing for seamless integration.
In terms of reliability, some competitors may not be able to withstand harsh industrial environments as well as IS220PDIAH1B. The high – quality construction and robust design of IS220PDIAH1B ensure its long – term operation in challenging conditions.
Regarding signal transmission speed, many competing products may have longer response times, which can lead to delays in the control process. IS220PDIAH1B‘s fast response time provides a significant advantage in real – time control applications.
6. Selection Advice
- Compatibility: When selecting IS220PDIAH1B, it is essential to ensure that it is compatible with your existing PLC system. Check the communication protocols and electrical specifications to avoid any integration issues.
- Installation Environment: Consider the environment where the component will be installed. If it is a harsh environment with high temperatures, humidity, or electromagnetic interference, ensure that IS220PDIAH1B has the appropriate protection and ratings.
- Budget: While IS220PDIAH1B offers high – quality performance, it is also necessary to consider your budget. Compare the prices from different suppliers and evaluate the cost – effectiveness based on your specific requirements.
7. Precautions
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure that the power supply is within the specified voltage range and that all connections are secure. Avoid installing the component in areas with excessive vibration or direct exposure to water or dust.
- Safety: When working with IS220PDIAH1B, always follow safety procedures. Disconnect the power supply before performing any maintenance or installation work to avoid electrical shock.
- Maintenance: Regularly inspect the component for any signs of damage or wear. Check the connections and clean the component if necessary. Update the firmware according to the manufacturer’s recommendations to ensure optimal performance.
