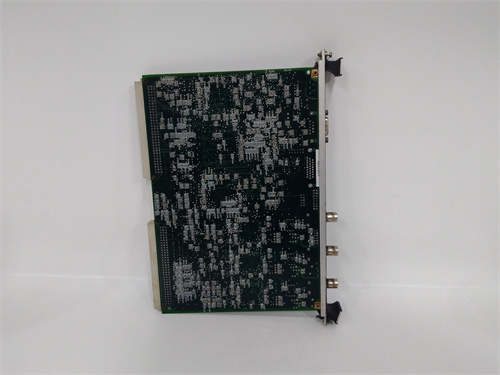

IS215VCMIH2B

Description

Parameter Specifications

1. Power Supply: The IS215VCMIH2B operates on a 24V DC power supply, with a power consumption typically around 10 – 15W. This power setup is designed to provide stable energy for its internal operations in industrial settings.
2. Communication Interface: It features a high – speed communication interface. It supports Ethernet communication with a data transfer rate of up to 100Mbps and adheres to the Profibus – DP protocol, which is widely used in industrial automation for seamless data exchange between different devices.
3. Input/Output Channels: It has 16 digital input channels and 16 digital output channels. The digital input channels can accept signals from various sensors such as proximity sensors, limit switches, etc. The digital output channels can drive actuators like solenoid valves, relays, with a current – driving capacity of up to 0.5A per channel.
4. Operating Temperature Range: It can function within a temperature range of – 20°C to 60°C. This wide – range tolerance allows it to be used in diverse industrial environments, including those with harsh temperature conditions.

Applications

1. Industrial Automation: In manufacturing plants, the IS215VCMIH2B can be used to control and monitor production lines. For example, it can manage the movement of conveyor belts, based on the signals from sensors detecting the presence of products. It can also control the operation of robotic arms during the assembly process.
2. Process Control: In chemical and pharmaceutical industries, it can regulate chemical processes. It monitors parameters such as valve status and pump operation through input channels and controls these devices via output channels to maintain optimal production conditions.
3. Power Generation: In power plants, it can be used to monitor and control the operation of turbines, generators, and other equipment. It can receive signals from sensors measuring temperature, pressure, etc., and take appropriate control actions.

Weight and Dimensions

1. Weight: Approximately 1 kg, which is relatively light and easy to handle during installation and maintenance.
2. Dimensions: It has a compact design with dimensions of about 180mm (length) x 120mm (width) x 70mm (height). This small size enables it to be easily installed in standard control cabinets.

Features

1. Dual – protocol Communication: The support for both Ethernet and Profibus – DP provides flexibility in integrating with different industrial networks and devices, allowing for easy connection to a wide range of automation systems.
2. Modular Design: It has a modular structure, which makes it convenient to expand or modify the system. Additional I/O modules can be added as per the specific requirements of the application.
3. Diagnostic Functions: Built – in diagnostic functions can detect faults in the module itself, input/output channels, and communication interfaces. This helps in quick troubleshooting and reduces system downtime.

Stability and Reliability

1. Robust Construction: Constructed with high – quality components and a durable enclosure, it can withstand industrial vibrations, shocks, and electromagnetic interference.
2. Electrical Isolation: It provides electrical isolation between input/output channels and the power supply, protecting the device from electrical noise and ensuring stable signal transmission.
3. Long – term Testing: Through extensive long – term testing, it has demonstrated reliable performance over time, with a low failure rate.

Practical Case
