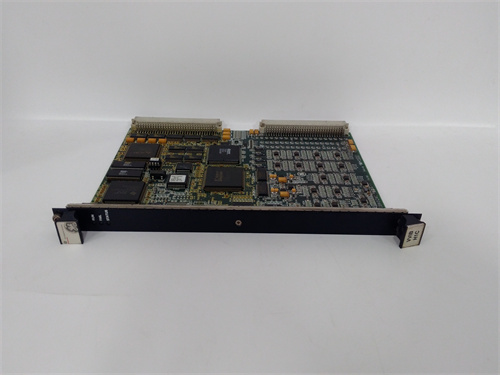

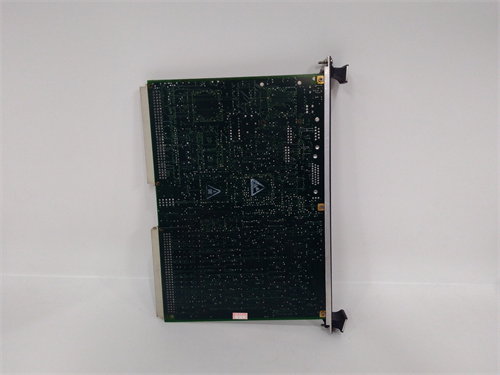

IS200VVIBH1CAC

Description

1.‌Parameters and Specifications‌:

• Model Number: IS200VVIBH1CAC, a unique identifier for the board within the GE product line.
• Function: Vibration monitoring, collecting and analyzing vibration signals from rotating machinery.
• Input Signals: Accepts signals from vibration sensors, including amplitude, frequency, and phase.
• Sampling Rate and Resolution: Specific sampling rates and resolutions vary based on application requirements.

2.‌Dimensions and Weight‌:

• Dimensions: Typically conforms to VME standard sizes, with exact dimensions provided in the manufacturer’s datasheet.
• Weight: The weight of the board varies depending on the specific model and components, with exact weight specified in product documentation.
•

3.‌Series‌:

• The IS200VVIBH1CAC belongs to the Mark VI series of control systems from GE, specifically designed for gas and steam turbine management.

4.‌Features‌:

• Advanced Signal Processing: Capabilities include filtering, amplification, and digitization of vibration signals.
• Multi-Channel Support: Typically supports multiple channels, allowing simultaneous monitoring of multiple vibration points.
• Real-time Monitoring: Enables real-time monitoring of equipment health, facilitating predictive maintenance and fault prevention.
• LED Indicators: Includes three LED indicators for failure, status, and operation, providing visual feedback on board status.

5.‌Functions and Role‌:

• The IS200VVIBH1CAC functions as a key component in industrial control systems, particularly in power generation, process control, and manufacturing applications.
• It plays a critical role in monitoring the vibration state of rotating machinery, such as turbines and compressors, to prevent failures and ensure operational safety.
• By providing real-time data and analysis, it enables effective predictive maintenance strategies, maximizing equipment uptime and reducing maintenance costs.
