IS200TREGH1BDC

Description

Parameters and specifications
Product or part type: Analog output module
Absolute accuracy error: +/ -0.2% full scale (77°F/25°C)
Accuracy varies with temperature: full scale 0.004% /°C (typical value)
Loop voltage: 6… 30V DC
Maximum voltage drop: < 30V 25mA
Bus current requirement: 550 MA
Analog output range: 0… 20 mA
Maximum power consumption: 5W
Operating temperature range: -40°C to +80°C (cooling water)
Maximum DC voltage: 500-900 VDC (or 50-400 100-820 VDCDC, range may vary depending on model or application)
Specification: 101623mm
trait

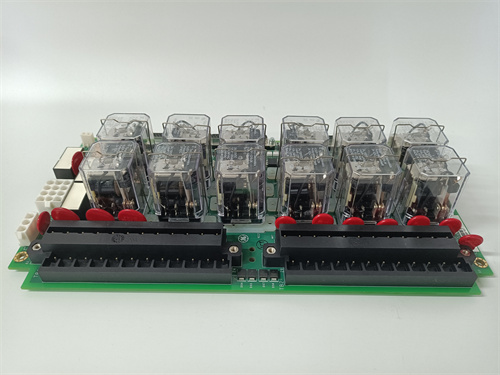

There are twelve relays, aligned in two rows of six each, with white and black relays and a silver metal wire at the top of each relay.
In addition to relays, the board is filled with metal oxide varistors and jumper ports.
Includes two voltage transformers (PTS) for bus and generator voltage inputs and conditional speed signal inputs for I/O packets.
Has a DC-37 pin connector to connect a cable to the terminal board to serve as a backup trip relay.
effect
The main use is as a terminal board for emergency trip protection in gas turbine control systems.
Provide backup protection and main protection functions to ensure the safe operation of the gas turbine.
