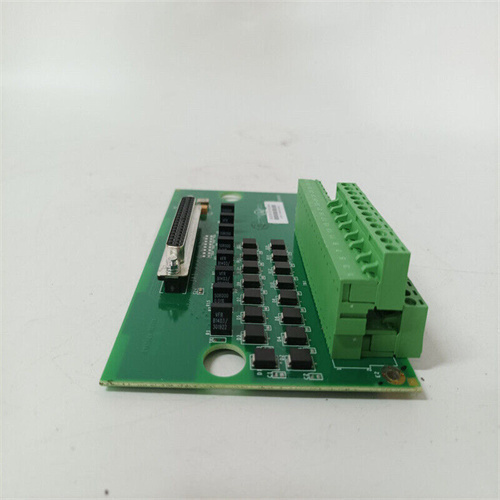

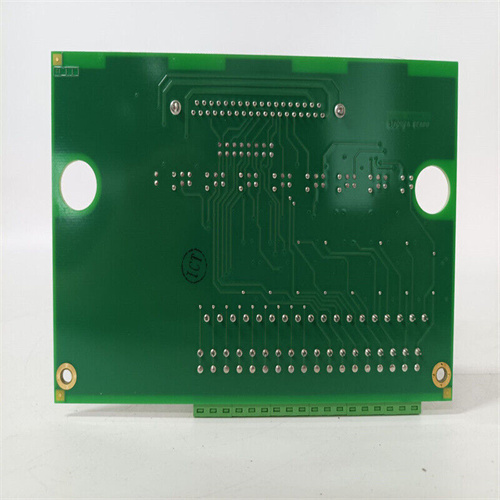

IS200TPROH1C

Description

dimension
The integrator adopts the S-shape structure, the size is: length x width x height =86x70x73mm
series
The product belongs to a family of electrical control or measurement equipment developed by GE
trait
The input is not saturated and the Rogowski principle is adopted
Fast response time, wide frequency response
Good linearity, high precision
Small size, light weight
effect
Suitable for all kinds of electrical systems, electroplating, electrolysis industry AC high current measurement and control
It can be used in fault recording of power system
Can be widely used in the input waveform complex signal detection

Number of SSI data bits: range from 1 to 32
The most important point (MSB) number: range from 1 to 32
Number of SSI clock bits: Range from 1 to 32, must be greater than or equal to (most important digit + (number of SSI data bits – 1))
Rated input: 0 ~ 20 kaac
Rated output: 0 ~ 20 madc, 0 ~ 5 vdc, 4 ~ 20 madc
Accuracy: Level 1.0
Linear range: 0 ~ 120%
Isolated voltage: 5000vdc/1 minute
Auxiliary power supply: +12vdc, ±12vdc, +24vdc
Operating temperature: -20℃ ~ +60℃
Temperature drift: <300ppm/℃
specification
Suitable for all kinds of electrical systems, electroplating, electrolysis industry AC high current measurement and control
Product input is saturable and Rogowski principle is adopted
Fast response time, up to us level
Product frequency response wide, up to 20khz or more
The product linearity is good, and the output linearity can reach 0.2%
The product precision is high, the overall accuracy is less than 1%
Small volume, light weight
