Description
Parameters and Specifications:

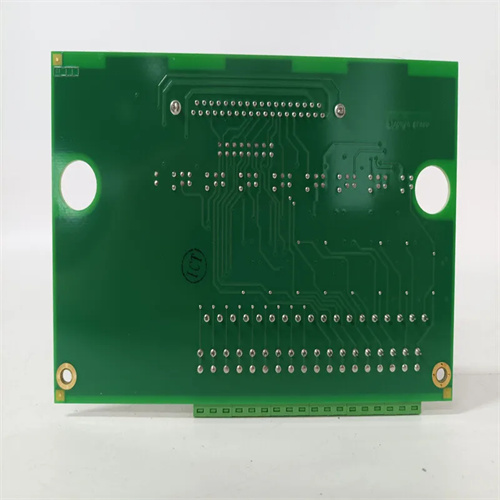

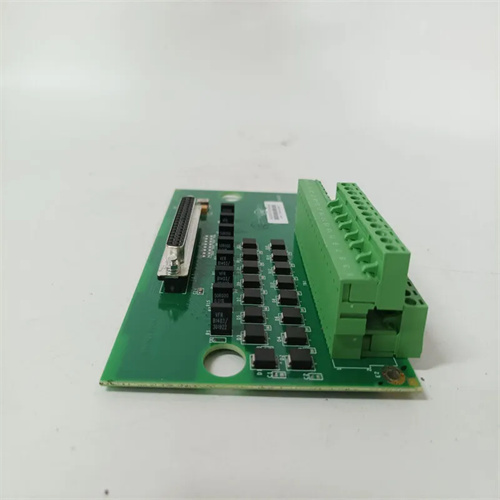

–Type: Discrete Simplex Circuit Board12
–Brand: GE12
–Series: Mark VI Speedtronic12
–Input Voltage: 24VDC, 48VDC2
–Output Voltage: 24VDC2
–Maximum Output Current: 10A2
–Operating Temperature Range: -40°C to +85°C2
–Input Channels: 82
–Maximum I/O Points: 3842
–Communication Protocols: Modbus, Ethernet, OPC2
Dimensions and Weight:
–Dimensions: 100mm x 50mm x 20mm
–Weight: 0.3kg2
Series:
- Part of GE’s Mark VI Speedtronic series12
Features:
–Discrete Design: Composed of individual electronic components, facilitating flexible maintenance and replacement13
–Simplex Communication: Capable of one-way data or signal transmission, suitable for specific control scenarios13
–LED Indicators: Three LED lights on the front panel for status display13
–High-Density Components: Features multiple integrated circuits, backplane connectors, relays, and resistors for efficient data processing and signal transmission13
–Durable and Reliable: Designed for industrial use with a wide operating temperature range2
Functions:
–Control System Component: A crucial part of the Mark VI Speedtronic control system, managing steam, gas, and hydro turbines of varying complexities and sizes12
–Data Transmission and Signal Processing: Responsible for data transmission, signal processing, and control logic execution13
–Automation and Monitoring: Enables automation and monitoring of turbine systems, enhancing operational efficiency and reliability
