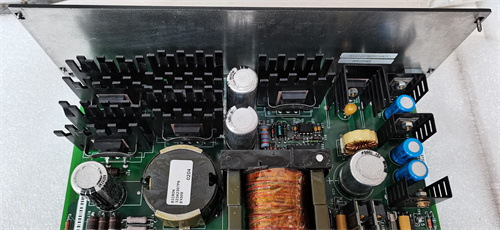

IS200EPSMG1A

Description

Parameters and specifications
Series: Belongs to the Mark VI series.
System: Suitable for gas/steam turbine management systems.
Input voltage: Receives 125V DC voltage from the power distribution module (PDM).
Output voltage: The voltage required to convert to EX2100 excitation control, such as +5V DC, 15V DC, and 24V DC.
System composition: The EPSM consists of two main parts, namely a buck regulator and a push-pull inverter.
Size and weight
Weight: About 0.12 kg
Characteristic and function
Functional features:
The step-down regulator converts the input voltage to a 50V DC intermediate voltage, and the push-pull inverter generates the necessary multiple output voltages.
The transformer of a push-pull inverter provides high voltage isolation between the input voltage source and the output of the control system.
The EPSMG1 provides +5V DC, 15V DC, and 24V DC power supplies for the control component backplane, which are used separately for different control components.
Functions:
The IS200EPSMG1A is responsible for the power supply in the turbine control system and is an important part of the excitation control system and regulator control.
Ensure that the components of the control system can operate properly to support the stable and efficient operation of the turbine.
