Description
Specifications and parameters
component : Part of the Mark VI system, a printed circuit board (PCB) manufactured by GE for gas turbine system control.

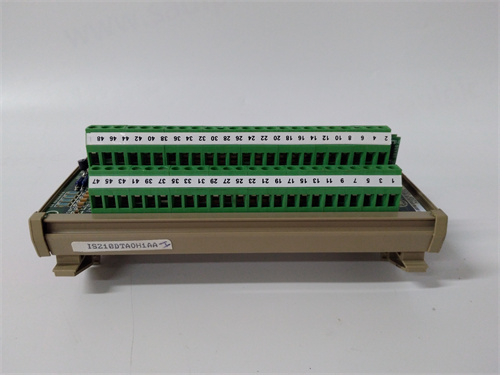

terminal board : There are two green terminal boards on the right, each containing 24 silver metal terminals.

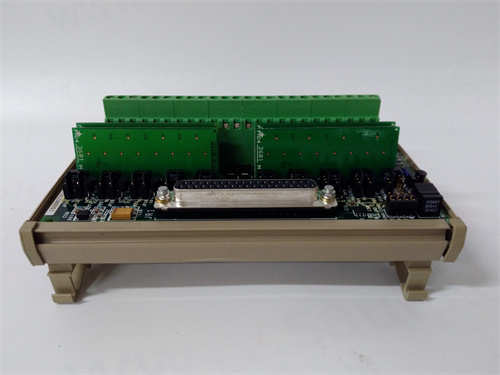

small circuit board : There are 4 small circuit boards in the center, placed vertically and arranged in 2 pairs.
capacitor and jumper : There are two blue capacitors between the two small circuit cards at the bottom edge; There is a row of four blue jumpers in the lower right corner.
other : There is a long black connector port on the left edge surrounded by a silver border.
Dimensions and weight
dimensions : The exact dimensions are not given directly, but can be described as a slender rectangle. Another related module is 120*210mm in size
Function and application
function : as a part of automatic industrial control equipment, used to control gas turbine system.
application : used in the end of production line palletizing, palletizing/dismantling operation station, production line palletizing transfer and other automatic links.
