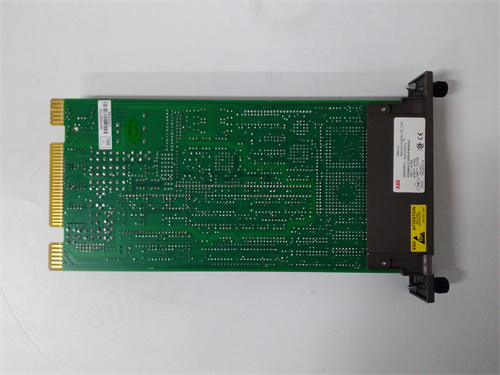

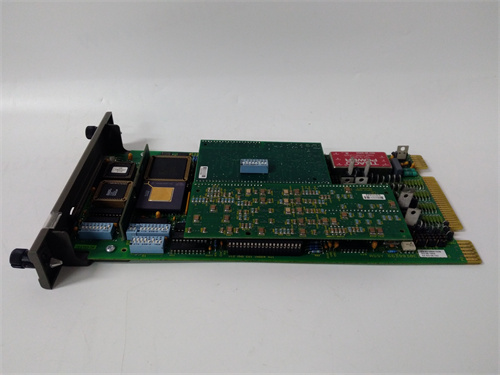

IMHSS03

Description

trait
High precision control: achieved through high resolution analog-to-digital and digital-to-analog converters.
Enhanced features: More precise LVDT signal conditions, I/H converter interface, and improved digital and analog input/output isolation compared to the previous generation.
Automatic adjustment: Its demodulator gain can be automatically adjusted to provide better control loop response.
Redundant design: Redundant LVDT interfaces and redundant servo valve outputs provide operational options.
Programmable function: Users can use programming software to write and debug custom control programs.
Easy to monitor: It can be used for signal monitoring and monitoring of complex control systems.
Strong compatibility: can be connected with a personal computer for communication, for PLC control management.

effect
​
The IMHSS03 hydraulic servo module is commonly used as a valve position control module to control turbine speed, integrating the servo valve or servomotor with the controller for precise speed and position control. It is widely used in various industrial automation and control systems, such as machine tools, robots, conveyor belt systems, printing presses, textile machinery, food processing machinery and industrial robots, etc., to improve production efficiency and accuracy.

argument
Power supply voltage: 24V DC
Rated current: 5A
Maximum current: 10A
Output power: According to different sources, there are two versions of 120W and 360W
Control mode: analog/pulse
Response frequency: 500Hz
Accuracy: ±0.05%FS
Reliability: MTBF>10000 hours
specification
Size:
100x60x30mm (one way of saying)
96mm x 48mm x 16mm (another word)
8.0 “x 2.0” x 13.0 “(approximately 20.3 cm x 5.1 cm x 33.0 cm, including packaging or shipping dimensions)
Weight:
0.5kg (one way to say it)
About 1.2kg (another way to say it)
2KG (another term, but may include packaging or accessories)
Protection class: IP65
