Description

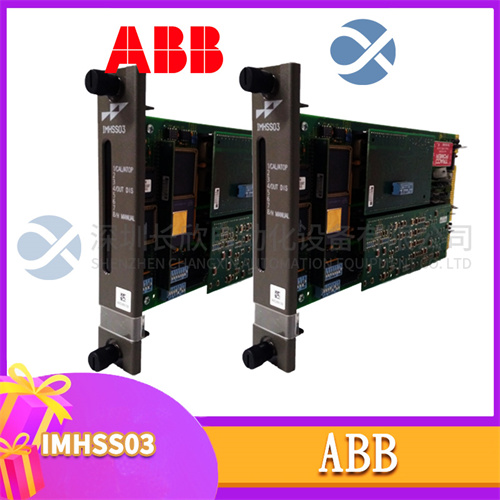

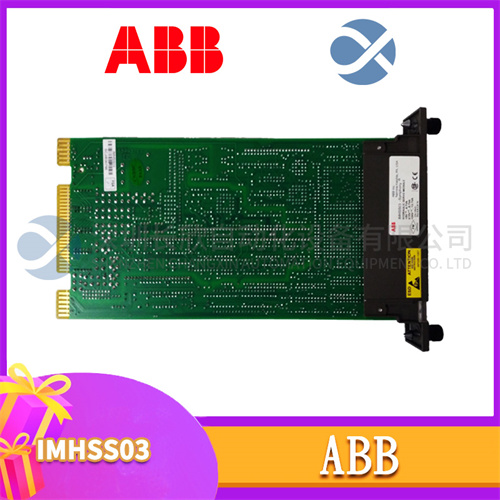

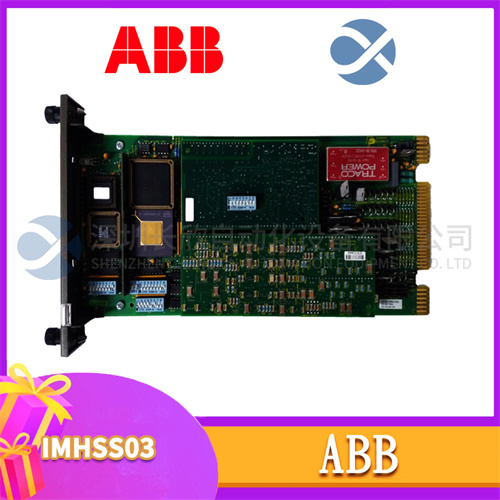

IMHSS03 is a hydraulic servo module, the following information about its parameters, specifications, dimensions, weight, series, characteristics and functions:
Parameters and specifications:
Power supply voltage: 24V DC
Rated current: 5A
Maximum current: 10A
Output power: 120W
Control mode: analog/pulse
Response frequency: 500Hz
Accuracy: ±0.05%FS
Reliability: MTBF>10000 hours
Size and weight:
Size: 100x60x30mm
Weight: 0.5kg
Series:
The IMHSS series is a family of ABB Bailey systems, and the IMHSS03 is a model in this series.
Features:
Small size, light weight: suitable for a variety of space and weight sensitive application scenarios.
High precision, high reliability: The use of advanced hydraulic servo technology to provide high precision and high reliability control.
High response speed: can quickly respond to external inputs and commands, to achieve fast dynamic adjustment and tracking.
Safety function: can monitor system anomalies and trigger emergency shutdown or other safety measures to ensure the stable operation of the system.
Easy installation and maintenance: Simple design, easy to install and maintain operations.
Strong compatibility: it can be connected with a personal computer for communication, convenient for users to program and control management.
Functions:
The IMHSS03 is a valve position control module for controlling turbine speed. In the INFI 90® system, it connects the servo valve or I/H converter to the multi-function processor module (MFP).
The MFP module controls the position of the steam or gas turbine throttle by sending a position requirement to the hydraulic servo (HSS) module, which drives its output to open or close the throttle to match the position requirement.
The module is also used for data exchange with other equipment to achieve collaborative work and is widely used in various industrial automation and control systems, such as machine tools, robots, conveyor belt systems and printing presses, to improve production efficiency and accuracy.
