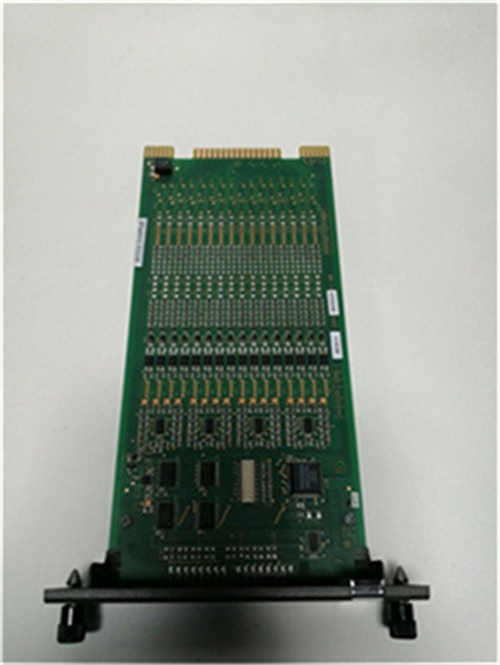

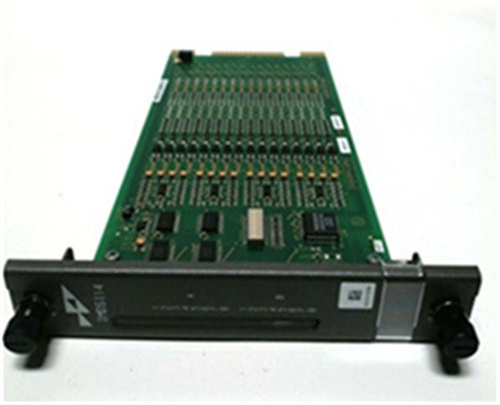

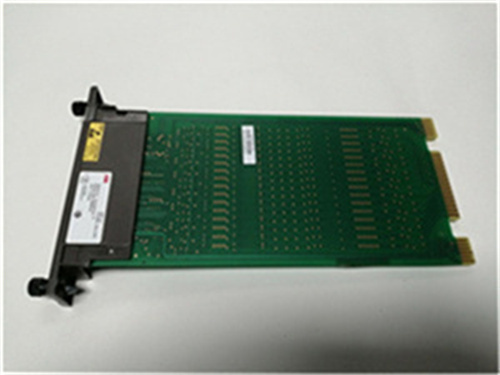

IMDSI14

Description

Parameter Specifications

Input Voltage: Typically operates within a range of 24 VDC ±10%.
Input Signals: Supports multiple analog and digital input signals. Can handle up to 14 channels of various signals like 4-20 mA current inputs, 0-10 VDC voltage inputs and digital ON/OFF signals.
Resolution: High resolution for accurate signal measurement, usually up to 16 bits for analog inputs.
Sampling Rate: Can sample input signals at a rate of up to 1 kHz per channel.

Applications

Process Control: Widely used in industrial process control systems to monitor and collect data from sensors such as temperature, pressure and flow sensors.
Building Automation: In building automation systems, it is used to gather data from environmental sensors, access control systems and energy meters.
Machine Monitoring: For monitoring the operation status of machines in manufacturing plants, collecting data on vibration, speed and other parameters.

Weight and Dimensions

Weight: Approximately 0.5 kg.
Dimensions: Usually has a compact design with dimensions of about 150 mm in length, 100 mm in width and 50 mm in height.
Features
High Channel Density: With 14 input channels, it offers a high channel density, reducing the need for additional modules.
Isolation: Provides electrical isolation between input channels and the system to prevent electrical interference.
Easy Configuration: Can be easily configured through software, allowing users to set up input types, ranges and sampling rates.

Stability and Reliability

Industrial-Grade Design: Built with high-quality components to withstand harsh industrial environments, including temperature variations, vibrations and electrical noise.
Redundancy Options: Some versions may support redundancy, ensuring continuous operation in case of component failure.
Error Detection and Correction: Equipped with error detection and correction mechanisms to ensure data accuracy and integrity.

Practical Case

In a chemical plant, the IMDSI14 is used to monitor the temperature and pressure of various reaction tanks. It collects data from multiple sensors installed on different tanks and transmits the data to the central control system. One day, a sensor on a particular tank malfunctioned and started sending abnormal signals. The IMDSI14 detected the abnormality and immediately flagged it. The plant operators were able to quickly identify the problem and take corrective actions, preventing a potential chemical reaction runaway and ensuring the safety and normal operation of the plant.
