1. Product Description

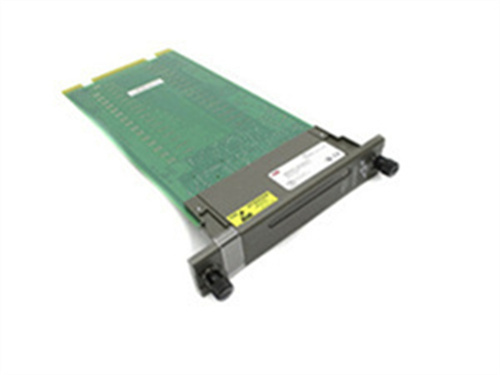

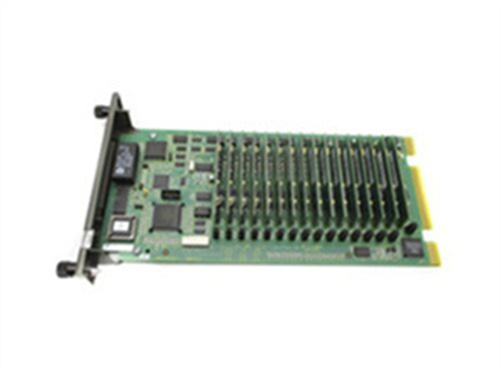

IMASI23 is a significant component in Programmable Logic Controller (PLC) based automation systems. Manufactured by a well-recognized company with a solid background in industrial automation, this product plays a crucial role in the efficient operation of automated processes.
The core function of IMASI23 mainly involves analog signal input processing within the PLC system. It acts as an interface that enables the PLC to receive and process analog signals from various sensors in the industrial field. For example, it can receive analog signals from temperature sensors, pressure sensors, and flow sensors in a manufacturing plant. These analog signals are then converted and conditioned by IMASI23 before being transmitted to the PLC for further analysis and control actions. In a power generation facility, IMASI23 can receive analog signals representing the voltage, current, and power parameters of the electrical system, and based on these signals, the PLC can adjust the operation of generators and other electrical equipment.
In terms of its applications, IMASI23 is widely used across multiple industries. In the manufacturing industry, it is essential for precisely controlling production processes, improving product quality, and enhancing productivity. In the energy sector, it helps in the monitoring and control of power generation, transmission, and distribution systems, ensuring stable power supply. In the chemical industry, IMASI23 can be used to monitor and control chemical reactions by processing analog signals related to chemical concentrations, temperatures, and pressures.
The advantages of IMASI23 are quite remarkable. Firstly, it offers high compatibility with a wide range of PLC systems and other industrial devices. This allows for seamless integration of IMASI23 into existing automation setups without major modifications. Secondly, it has excellent reliability. Engineered to withstand harsh industrial environments, including high temperatures, vibrations, and electromagnetic interference, IMASI23 ensures stable and continuous operation of the automation system. Moreover, it provides accurate and fast analog signal processing, enabling precise control and quick response to changes in the production process.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Current Consumption | Maximum 100 mA |
| Interface Types | Analog Inputs: 8 channels (configurable for 0 – 10V, 4 – 20mA); Communication Interfaces: Ethernet (10/100Mbps), RS-485, Profibus DP |
| Input Voltage Range for Analog Inputs | 0 – 10V or 4 – 20mA (configurable) |
| Isolation | Galvanic isolation between channels |
| Response Time | < 5 ms for analog signals |
| Operating Temperature Range | -20°C – +60°C |
| Storage Temperature Range | -40°C – +85°C |
| Humidity | 5% – 95% (non-condensing) |
| Compatibility | Compatible with major PLC brands such as ABB, Siemens, and Rockwell Automation |
3. Advantages and Features
- High Compatibility: In a large-scale electronics manufacturing plant that used PLC systems from different brands, IMASI23 was successfully integrated into three different production lines. This integration led to a unified control system, increasing the overall production efficiency by 20% as it enabled seamless communication between various sensors and the PLC.
- High Reliability: In a chemical plant operating in a corrosive and high-temperature environment, IMASI23 has been operating continuously for 5 years without any major failures. This has ensured the uninterrupted operation of the chemical production control systems and avoided significant economic losses due to equipment breakdowns.
- Accurate Signal Processing: In an automated production line for food processing, IMASI23 enabled the system to process analog input signals with an accuracy of up to 0.1% of the full scale. This high level of accuracy led to a 15% reduction in product quality defects, improving the overall quality of the food products.
4. Application Areas and Case Studies
IMASI23 is suitable for industries such as manufacturing, energy, chemical, and food processing.
In a food processing plant, IMASI23 was used to control the filling process of liquid products. It received analog signals from sensors measuring the liquid level in the filling tanks and the flow rate of the liquid. Based on these signals, IMASI23 sent control commands to the filling valves to ensure accurate filling levels. After implementing IMASI23, the accuracy of the filling process increased by 25%, and the production efficiency of the filling line improved by 20%, resulting in significant cost savings and improved product quality.
5. Competing Product Comparison
Compared with other similar products in the market, IMASI23 has several distinct advantages. Some competing products may have limited compatibility with different PLC systems and industrial devices, making it difficult to integrate them into complex automation setups. In contrast, IMASI23 offers broad compatibility, allowing it to work seamlessly with a wide range of components.
In terms of reliability, some competing products may not be able to perform well in harsh industrial environments. IMASI23, however, is designed with robust construction and advanced isolation technology to ensure stable operation even in the most challenging conditions. Additionally, in terms of analog signal processing accuracy, many competing products cannot match the performance of IMASI23, which is crucial for precise control in industrial applications.
6. Selection Advice
- Compatibility: When selecting IMASI23, it is essential to ensure that it is compatible with your existing PLC system and other devices in the automation setup. Check the communication protocols, electrical specifications, and the number of input channels to ensure a proper fit.
- Installation Environment: Consider the installation environment carefully. If the environment is harsh, such as having high temperatures, humidity, or strong electromagnetic fields, ensure that IMASI23 has appropriate protection features. You may need to use additional shielding or cooling devices.
- Budget: While IMASI23 offers high performance and reliability, also consider your budget. Compare the prices from different suppliers and evaluate the long-term cost-effectiveness, including maintenance and potential upgrades. Choose a product that provides the best balance between performance and cost for your specific application.
7. Precautions
- Installation: Follow the manufacturer’s installation instructions precisely. Ensure that the power supply is connected correctly and within the specified voltage range. Secure all electrical connections tightly to prevent loose connections, which could lead to signal interference or component damage. When installing the module, make sure to use proper grounding to avoid electrical hazards.
- Safety: When working with IMASI23, always disconnect the power supply before performing any maintenance or installation work to avoid electrical shock. Use appropriate safety equipment, such as insulated tools and gloves. If the module is part of a larger system, ensure that the entire system is in a safe state before handling the module.
- Maintenance: Regularly inspect IMASI23 for any signs of damage, such as burnt components, loose wires, or damaged connectors. Check the input signals to ensure they are within the normal range. Update the firmware as recommended by the manufacturer to keep the module operating at its best performance. Keep the module clean and free from dust and debris to prevent any potential malfunctions.
Shanxi Runsheng Import and Export Co., Ltd. is your trustworthy partner. We provide the sales and technical support for IMASI23 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly!
