IDP10-AF1C01F

Description

argument
As a drive:
Input DC power supply: 24VDC to 75VDC
Max. continuous current: 20A
Operation mode: Network command mode, pulse/direction mode, analog signal mode and independent operation mode
Network command mode: RS232 communication (RS485 and CAN bus optional)
I/O port Settings: 6 photoelectric isolation digital input ports (including pulse and direction input ports), 2 photoelectric isolation digital output ports, and a +/-10V analog input interface
Protection function: temperature protection, over current, over voltage, under voltage protection, I2T current limit
As a pressure transmitter:
Pressure measurement range: A variety of pressure ranges can be measured, such as absolute pressure, relative pressure or differential pressure
Output signal: Support a variety of output signal types, such as 4-20mA current output, 0-10V voltage output, etc
specification
Type: May be a driver or pressure transmitter
Series: IDP10 series
Brand: Foxboro (now Schneider)
Size and weight
Size: The specific size is not directly given, but it is mentioned that the product is small
Weight: A weight of 2KG is mentioned in the search results for Zhangzhou Fengyun Electrical Equipment Co., LTD., but please note that this may be the weight of a specific configuration or version and may not necessarily apply to all IDP10-AF1C01F products
series
Series: IDP10 series
trait
As a drive:
Specially designed for low inductance hollow cup motor
S-curve trajectory planning function (point-to-point position control mode), T-curve trajectory planning function (speed control mode)
It has position control mode, speed control mode and torque control mode
Easy integration of PLC functions
Support control parameter saving and alarm history saving functions
Supports remote online technical support

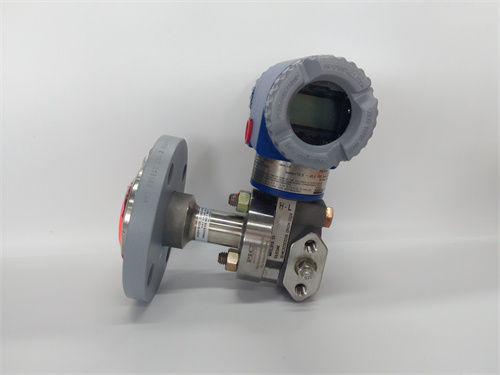

As a pressure transmitter:
High precision measurement: Excellent accuracy in industrial environments
Intelligent two-wire d/p cell transmitter: provides accurate and reliable differential pressure measurement
Transmit output signals from 4 to 20 mA: as well as superimposed HART digital signals for remote configuration and monitoring
effect
As a driver: Used to control motors for precise position, speed and torque control for industrial applications requiring high-precision motor control
As a pressure transmitter: used to measure and transmit pressure signals, suitable for industrial process control systems requiring pressure monitoring, such as power, petroleum, chemical, natural gas and other industries
