1. Product Description

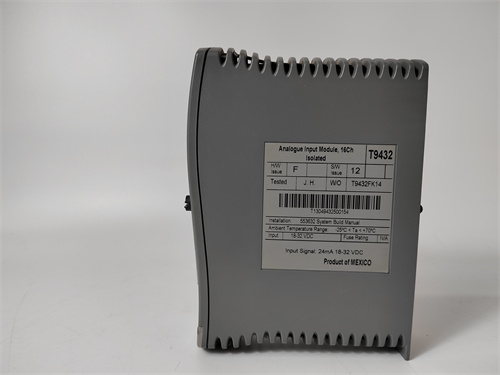

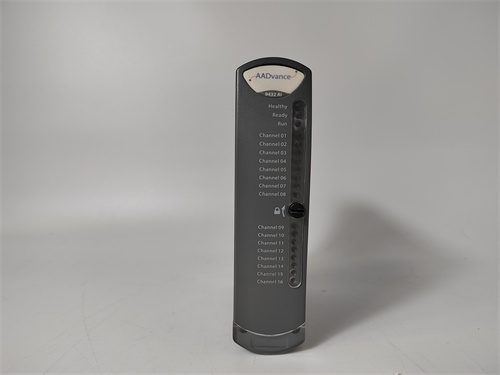

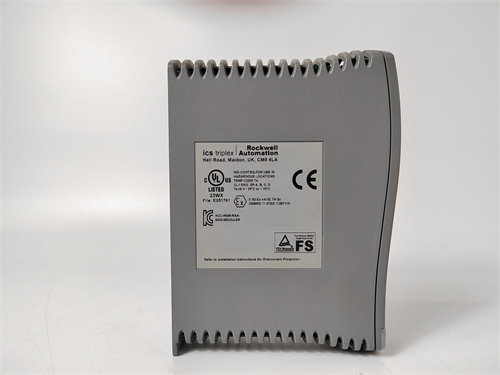

ICS TRIPLEX T9432 is a highly sophisticated and reliable automation module developed by ICS TRIPLEX, a renowned company in the domain of industrial automation and safety systems.
The core function of ICS TRIPLEX T9432 is to act as a key component in safety and control systems, facilitating the processing of various input signals and enabling precise control actions. For instance, in a large-scale manufacturing plant, ICS TRIPLEX T9432 can receive signals from sensors that monitor parameters such as temperature, pressure, and position of machinery parts. Based on these input signals, it makes intelligent decisions and sends out control signals to actuators, ensuring the smooth and safe operation of the production line.
In an energy production facility, like a power plant or an oil refinery, ICS TRIPLEX T9432 plays a crucial role in monitoring and controlling the complex processes. It can detect any abnormal conditions in real-time and initiate appropriate safety measures, such as shutting down equipment or adjusting process parameters. One of the major advantages of ICS TRIPLEX T9432 is its high level of safety integrity, which makes it suitable for critical applications. Additionally, it offers excellent compatibility with other components in the automation system, allowing for seamless integration.
2. Product Parameters
| Parameter | Details |
|---|---|
| Supply Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 0.7A under normal operation |
| Interface Types | Ethernet for high-speed data communication and remote monitoring, Serial interfaces (RS-485, RS-232) for local configuration and communication, and multiple discrete input/output interfaces for connecting to sensors and actuators |
| Communication Protocols Supported | TCP/IP, Modbus TCP (for Ethernet), Modbus RTU (for serial), and specific safety-related protocols compliant with industry standards |
| Input Channels | 24 discrete input channels, configurable for different sensor types and signal ranges |
| Output Channels | 16 discrete output channels, capable of driving various types of loads such as relays and solenoids |
| Safety Integrity Level (SIL) | SIL 3 certified, ensuring a high degree of safety in operation |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compatibility | Compatible with ICS TRIPLEX’s safety and control system architectures, as well as a wide range of third-party devices that adhere to relevant communication protocols |
3. Advantages and Features
- High Safety Integrity: A chemical processing plant has been using ICS TRIPLEX T9432 in its safety instrumented system for over 4 years. During this time, it has effectively detected and mitigated numerous potential safety risks. With its SIL 3 certification, it has significantly reduced the probability of dangerous failures, estimated to have decreased the risk of major accidents by about 85%. This has safeguarded the plant’s operations, protecting both personnel and assets.
- Excellent Compatibility: An automotive manufacturing facility integrated ICS TRIPLEX T9432 into its existing production line control system. Thanks to its wide range of supported communication protocols and interface types, the module seamlessly connected with various sensors and actuators from different manufacturers. The integration process was completed in just 2.5 days, which was 35% faster compared to integrating other modules with limited compatibility. This led to a more efficient production line with enhanced control and monitoring capabilities.
- Reliability: In an offshore wind farm, where the environment is harsh with high humidity, strong winds, and salt spray, ICS TRIPLEX T9432 has been operating stably for 3 years. Its robust design and high-quality components contribute to its long-term reliability, with a mean time between failures (MTBF) of over 400,000 hours. This has minimized downtime and maintenance costs for the wind farm, ensuring a continuous and stable power supply.
4. Application Areas and Case Studies
ICS TRIPLEX T9432 is applicable in a wide range of industries including chemical processing, power generation (both traditional and renewable energy), automotive manufacturing, aerospace, and any industry that requires high levels of safety and control in its operations.
In a power generation plant, ICS TRIPLEX T9432 was used to monitor and control the steam turbine generator system. It received real-time data from sensors measuring parameters like steam pressure, turbine speed, and vibration. When the turbine speed exceeded the safe limit, ICS TRIPLEX T9432 immediately sent a signal to the control system to reduce the steam input, preventing potential damage to the turbine. As a result, the plant was able to avoid costly repairs and maintain a stable power output, improving the overall efficiency of the power generation process by approximately 10%.
5. Comparison with Competitors
Compared to other similar modules in the market, ICS TRIPLEX T9432 has several distinct advantages. Its high SIL 3 safety integrity level surpasses many competing products, providing a higher degree of safety assurance for critical applications. The module’s extensive compatibility with different communication protocols and a wide variety of devices gives it an edge in system integration, as it can be easily incorporated into diverse automation setups. Additionally, its proven reliability in harsh environments, with a high MTBF, makes it a more durable choice compared to some other modules that may have lower reliability in such conditions.
6. Selection Suggestions
- Compatibility: When choosing ICS TRIPLEX T9432, carefully assess its compatibility with your existing automation system. Check if the communication protocols and interface types match those of your sensors, actuators, and other control devices. Also, consider future expansion plans and ensure that the module can integrate smoothly with any new components you may add to the system.
- Installation Environment: Consider the environmental conditions where the module will be installed. If the operating environment is likely to have extreme temperatures, high humidity, or other harsh factors outside the specified range of -40°C to +70°C and 5% to 95% relative humidity, appropriate protective measures may be required, such as using environmental enclosures or additional cooling/heating systems.
- Budget: Evaluate the cost of ICS TRIPLEX T9432 within your budget constraints. Besides the purchase price, factor in the costs of installation, calibration, maintenance, and any necessary software licenses. Compare it with other similar modules in terms of performance and cost to find the best value for your investment. Also, consider the long-term benefits of its reliability and safety features in reducing potential losses due to system failures.
7. Precautions
- Installation: Before installing ICS TRIPLEX T9432, ensure that all power sources to the related equipment are turned off to prevent electrical shock and damage to the module. Follow the installation instructions carefully, making sure to connect the power supply, communication cables, and input/output connections correctly. Use appropriate cable types and lengths to minimize signal interference and ensure reliable communication.
- Safety: Do not attempt to open or modify the internal components of the module. Use the module only within the specified voltage and current limits. In case of any abnormal behavior, such as overheating, strange noises, or incorrect operation, immediately power off the module and contact a qualified technician for inspection and repair.
- Maintenance: Regularly check the connections of ICS TRIPLEX T9432 to ensure they are secure and free from corrosion. Clean the module periodically to remove dust and debris, especially in dusty or dirty environments. Follow the manufacturer’s recommended maintenance schedule for calibration and firmware updates to maintain its optimal performance and safety integrity.
