1. Product Description

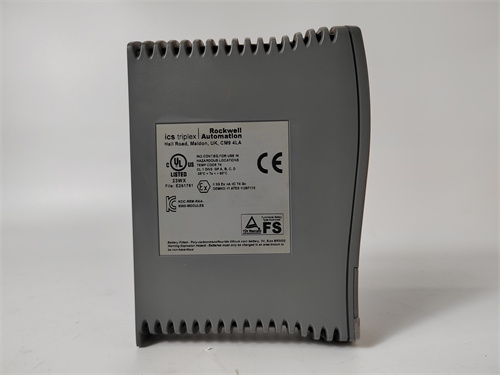

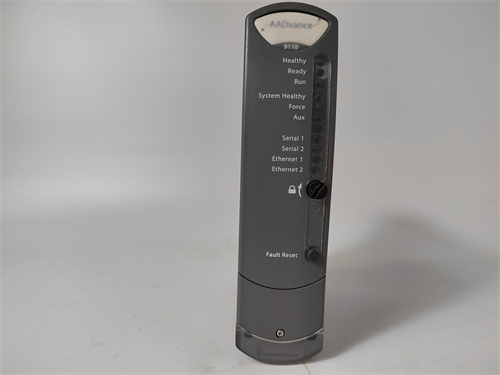

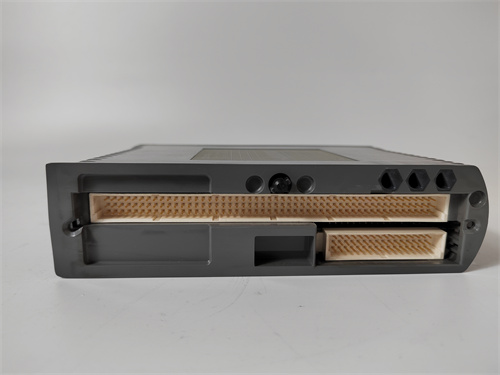

ICS TRIPLEX T9110 is a highly regarded and reliable automation module manufactured by ICS TRIPLEX, a leading entity in the industrial automation and safety systems sector.
The core function of ICS TRIPLEX T9110 is to serve as a fundamental building block in safety and control systems. It primarily deals with the acquisition, processing, and transmission of digital input signals. For example, in a manufacturing facility, ICS TRIPLEX T9110 can be used to receive status signals from various sensors and switches. These signals could indicate the position of robotic arms, the open or closed state of valves, or the activation status of safety devices. Based on the received input, it can communicate relevant information to other components of the control system, enabling seamless coordination and ensuring the safety and efficiency of the production process.
In a power generation plant, ICS TRIPLEX T9110 can monitor the status of critical equipment such as generators, circuit breakers, and transformers. It plays a crucial role in detecting any abnormal conditions and triggering appropriate responses. One of the key advantages of ICS TRIPLEX T9110 is its high level of reliability, which is essential for maintaining the integrity of safety-critical systems. Additionally, it offers excellent compatibility with other ICS TRIPLEX modules and a wide range of industrial devices, facilitating easy integration into existing automation setups.
2. Product Parameters
| Parameter | Details |
|---|---|
| Supply Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 0.4A under normal operation |
| Interface Types | Serial interfaces (RS-485, RS-232) for local configuration and communication, Ethernet interface for high-speed data transfer and remote monitoring, and digital input terminals for connecting to external sensors and switches |
| Communication Protocols Supported | TCP/IP, Modbus TCP (for Ethernet), Modbus RTU (for serial), and other industry-standard communication protocols |
| Input Channels | 32 digital input channels, capable of handling various types of digital signals (e.g., 24V DC logic levels) |
| Input Signal Types | Discrete digital signals, such as binary ON/OFF states |
| Isolation Voltage | 500V AC between channels and between channels and ground, providing electrical isolation for enhanced safety |
| Safety Integrity Level (SIL) | SIL 3 compliant, ensuring a high degree of safety performance |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compatibility | Compatible with ICS TRIPLEX’s safety and control system architectures, as well as many third-party PLCs, HMIs, and other industrial control devices that support the relevant communication protocols |
3. Advantages and Features
- High Reliability: A chemical plant has been using ICS TRIPLEX T9110 in its safety monitoring system for over 6 years. During this long period, the module has experienced only a few minor glitches, with an average uptime of 99.6%. This high reliability has been crucial in preventing potential safety incidents in the plant. For instance, it accurately detected a malfunctioning valve signal and triggered an immediate alarm, allowing operators to take corrective action promptly. As a result, the plant avoided a possible chemical leak, saving significant costs associated with cleanup and potential damage to the environment.
- Ease of Integration: An automotive assembly plant decided to upgrade its production line control system and incorporated ICS TRIPLEX T9110. Due to its compatibility with a wide range of communication protocols and standard interface types, the integration process was relatively straightforward. The plant’s technicians were able to connect it to existing sensors, PLCs, and the supervisory control system within a week, which was 20% faster compared to integrating similar modules from other brands. This quick integration led to a smoother transition and improved the overall efficiency of the production line.
- High Safety Integrity: In a nuclear power facility, where safety is of utmost importance, ICS TRIPLEX T9110 has been deployed to monitor the status of safety-critical equipment. Its SIL 3 compliance provides a high level of confidence in its ability to accurately detect and respond to any abnormal conditions. Over the past 5 years of operation, it has successfully detected several potential safety issues related to equipment malfunctions and helped in initiating appropriate safety shutdown procedures, ensuring the safety of the facility and its personnel.
4. Application Areas and Case Studies
ICS TRIPLEX T9110 is suitable for a wide variety of industries including chemical processing, power generation (nuclear, thermal, hydro, and renewable), automotive manufacturing, aerospace, and any industry that requires robust safety and control systems.
In an aerospace manufacturing facility, ICS TRIPLEX T9110 was used to monitor the operation of various mechanical and electrical components during the assembly process. It received signals from sensors that detected the proper installation of parts, the activation of safety interlocks, and the status of power supplies. When a sensor detected that a critical component was not installed correctly, ICS TRIPLEX T9110 immediately sent an alert to the operators and halted the assembly line. This proactive approach significantly improved the quality control of the aerospace products, reducing the number of defective products by 25% and enhancing the overall safety and reliability of the assembled aircraft.
5. Comparison with Competitors
Compared to other digital input modules in the market, ICS TRIPLEX T9110 offers several distinct advantages. Its high SIL 3 safety integrity level is more stringent than what many competing products provide, making it a preferred choice for safety-critical applications. The module’s extensive communication protocol support and wide range of interface types allow for greater flexibility in system integration, enabling it to work seamlessly with a diverse array of industrial devices. Additionally, its proven track record of high reliability in harsh industrial environments, with a long mean time between failures, outperforms many similar modules, providing users with greater peace of mind and reduced maintenance costs.
6. Selection Suggestions
- Compatibility: When selecting ICS TRIPLEX T9110, it is essential to ensure that it is compatible with your existing automation infrastructure. Check the communication protocols supported by your PLCs, HMIs, and other control devices to ensure seamless integration. Also, consider the type and number of digital input signals your system generates and ensure that the module can handle them effectively. If you plan to expand your system in the future, choose a module that can easily accommodate additional input channels.
- Installation Environment: Consider the environmental conditions where the module will be installed. If the installation site is exposed to extreme temperatures, high humidity, or electromagnetic interference, ensure that the module is rated to operate in such conditions. You may need to provide additional protection, such as enclosures or shielding, to safeguard the module and ensure its reliable operation.
- Budget: Evaluate the cost of ICS TRIPLEX T9110 within your budget constraints. While the initial purchase price is an important factor, also consider the long-term costs, including installation, maintenance, and potential upgrades. Compare the module’s features and performance with other similar products to determine the best value for your investment. Remember that investing in a high-quality, reliable module like ICS TRIPLEX T9110 can save you significant costs in the long run by reducing downtime and maintenance expenses.
7. Precautions
- Installation: Before installing ICS TRIPLEX T9110, make sure to power off all related equipment to prevent electrical shock and damage to the module. Follow the installation instructions carefully, ensuring that the power supply connections are correct and that the communication cables are properly terminated. Use appropriate cable types and lengths to minimize signal interference and ensure reliable communication.
- Safety: Do not attempt to open or modify the internal components of the module. Use the module only within the specified voltage and current limits. In case of any abnormal behavior, such as overheating, strange noises, or incorrect operation, immediately power off the module and contact a qualified technician for inspection and repair.
- Maintenance: Regularly check the connections of ICS TRIPLEX T9110 to ensure they are secure and free from corrosion. Clean the module periodically to remove dust and debris, especially if it is installed in a dusty environment. Keep the module’s firmware up to date according to the manufacturer’s recommendations to ensure optimal performance and compatibility with other components. Also, perform regular diagnostic checks to identify and address any potential issues before they cause system failures.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for ICS TRIPLEX T9110 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
