Description

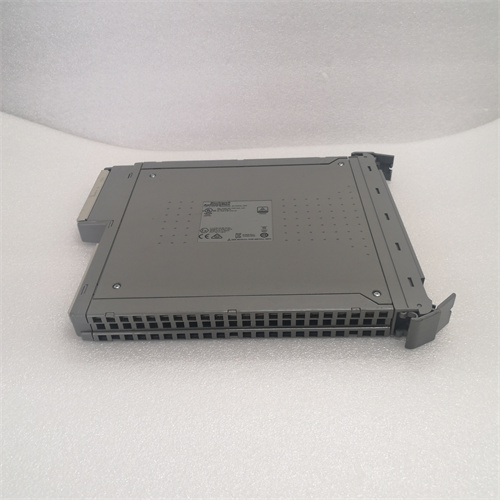

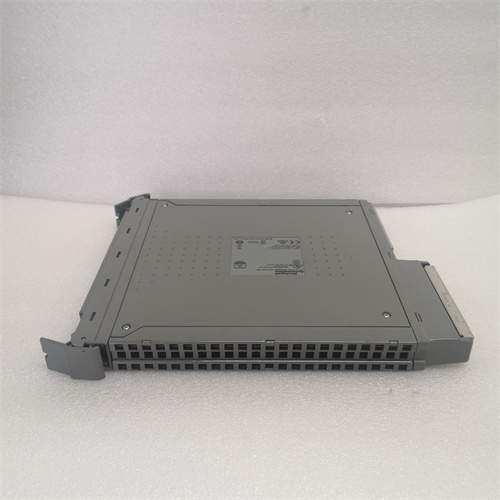

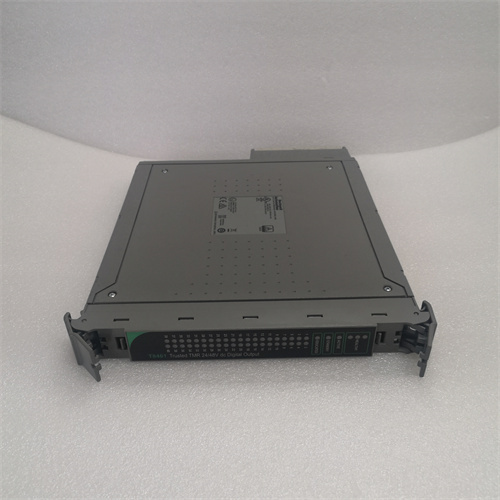

ICS TRIPLEX T8461 is a high-performance digital input/output module designed for industrial automation and control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
Input Channels: The T8461 module offers 40 triple modular redundant (TMR) input channels for connecting to field devices.
Output Channels: Depending on the specific variant (input or output), the T8461 supports a corresponding number of digital output channels.
Specifications:
System Power Supply Voltage Range: For the digital output module, it ranges from 20 to 32V DC.
Operating Output/Field Voltage Range: The output voltage range is 18 to 60V DC.
Dimensions and Weight:
Dimensions: The module measures approximately 266mm (10.5 inches) in height, 31mm (1.2 inches) in width, and 303mm (12 inches) in depth.
Weight: The weight is reported to be 1.285 kilograms (2.8 pounds).
Series:
ICS TRIPLEX T8461 belongs to the ICS TRIPLEX series of industrial automation components.
Features:
Triple Modular Redundancy (TMR): Provides fault tolerance and high reliability by using triple measurements for each input channel.
Automatic Diagnosis and Self-Test: Monitors module status and detects potential faults.
Line Monitoring: Detects open and short circuit faults in field cabling.
Event Sequence Reporting (SOE): With a resolution of 1ms, it logs state changes.
Communication Interfaces: Supports various industrial communication protocols for integration with other systems.
High Density and Flexibility: Supports multiple digital output channels, allowing for simultaneous control of multiple actuators or devices.
Programmable: Users can customize control signal output instructions through programming software.
Function/Role:
ICS TRIPLEX T8461 serves as a critical component in industrial automation and control systems. It receives and processes input signals and generates digital output signals to control devices or execute specific actions.
It finds applications in various industries, including petrochemical, power, pharmaceutical, food processing, and manufacturing, improving production efficiency and product quality.
