Description

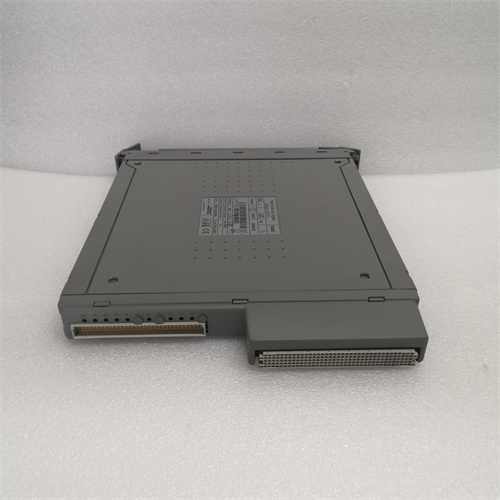

ICS TRIPLEX T8461 is a highly specialized module designed for industrial automation systems. Here are the key parameters, specifications, dimensions, weight, series, features, and functions of the ICS TRIPLEX T8461 in English:
Parameters and Specifications:
Type: TMR (Triple Modular Redundancy) Digital Input Module.
Input Channels: Supports up to 40 input channels with triple redundancy for fault tolerance.
Input Voltage Measurement: Measures field voltages using sigma-delta input circuits and compares them with user-configurable threshold voltages.
Line Monitoring: Detects open and short-circuit faults in field cables.
SOE (Sequence of Events) Reporting: Provides resolution of 1 ms for state changes.
Dimensions and Weight:
Dimensions: Exact dimensions may vary depending on the specific configuration and accessories. However, it is designed to fit within standard industrial automation rack spaces.
Weight: The weight is approximately 0.13 kilograms (for the T8461 digital input module) or 1.285 kilograms (for the T8461C output module).
Series:
ICS TRIPLEX T8461 belongs to the ICS TRIPLEX series of industrial automation components, which are widely used in critical applications.
Features:
Triple Modular Redundancy (TMR): Ensures fault tolerance and continuous operation even in the event of component failure.
Comprehensive Fault Detection: With built-in diagnostic tests, it provides comprehensive fault detection and monitoring.
Configurable Line Monitoring: Allows for the independent configuration of line monitoring functions for each input channel.
Optical and Electrical Isolation: Provides 2500 V pulse tolerance for optical/current isolation.
Online Hot Replacement: Supports online hot replacement of modules.
LED Indicators: Front panel input status LEDs indicate input status and field wiring faults, while module status LEDs indicate module operation and mode.
Functions/Role:
ICS TRIPLEX T8461 plays a crucial role in industrial automation systems, providing reliable digital input functionality with triple redundancy.
It ensures accurate and timely detection of field inputs, such as from sensors and devices, and converts them into digital signals for further processing and analysis.
The module’s fault tolerance and comprehensive fault detection capabilities contribute to minimizing downtime, enhancing system reliability, and improving overall operational efficiency.
