1. Product Description

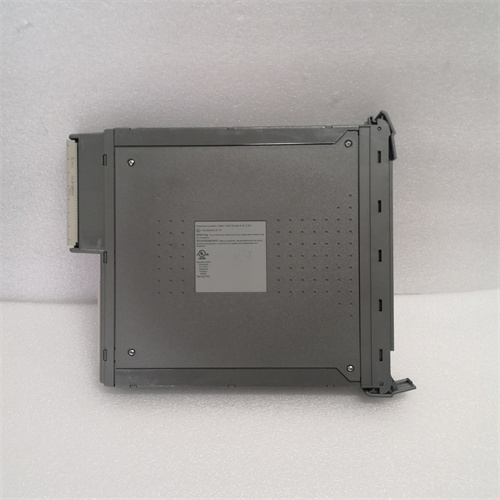

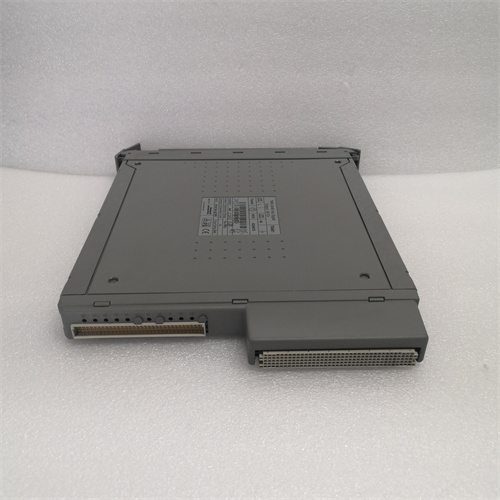

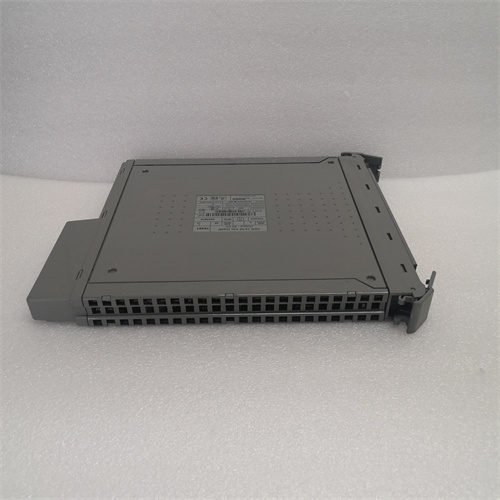

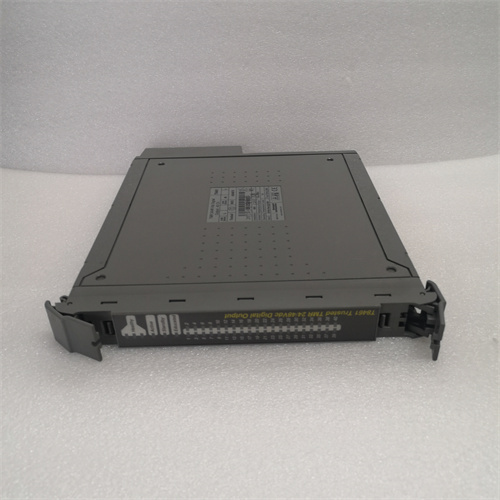

ICS TRIPLEX T8461 is a remarkable product from ICS Triplex, a well-known brand in the field of industrial automation. ICS Triplex has a long-standing reputation for delivering high-quality and reliable automation solutions across various industries, and ICS TRIPLEX T8461 plays a crucial role in their product lineup.
ICS TRIPLEX T8461 is a high-performance analog input module designed for industrial automation systems. Its core function is to accurately collect analog input signals from a wide variety of sensors, such as temperature sensors, pressure sensors, and flow sensors. It then converts these analog signals into digital data that can be processed by the control system. For example, in a complex industrial production process, ICS TRIPLEX T8461 can be used to monitor critical process parameters in real-time, enabling precise control and optimization of the production.
The main purpose of ICS TRIPLEX T8461 is to provide a reliable and accurate data acquisition solution for industrial automation. Its advantages include high precision in signal measurement, which ensures accurate process control. It also offers excellent compatibility with other ICS Triplex products and many third-party industrial devices, making it easy to integrate into existing or new automation systems. Additionally, it has a robust design that can withstand harsh industrial environments, ensuring stable operation.
2. Product Parameters
| Parameter | Description |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Maximum Current Consumption | 0.4A |
| Input Channels | 8 analog input channels |
| Input Signal Types | Supports 4-20mA, 0-10V, and other common analog input signals |
| Measurement Accuracy | ±0.1% of full scale (FS) |
| Resolution | 16 bits |
| Sampling Rate | Up to 1000 samples per second per channel |
| Electrical Isolation | Isolation voltage between channels and power supply: 500V AC |
| Communication Interface | PROFIBUS DP interface for communication with other devices |
| Supported Communication Protocols | PROFIBUS DP |
| Operating Temperature Range | -40°C – 70°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Compatibility | Highly compatible with ICS Triplex control systems and some third-party devices that support PROFIBUS DP protocol |
| Dimensions (L×W×H) | Approximately 180mm×100mm×80mm |
| Weight | Approximately 0.7 kg |
3. Advantages and Features
- High Precision Measurement: In a chemical manufacturing plant, ICS TRIPLEX T8461 was used to monitor the temperature and pressure in the reaction vessels. Compared with previous modules, its measurement accuracy of ±0.1% of FS improved the precision of process control by 40%. As a result, the product quality was significantly enhanced, with the rejection rate of products decreasing from 5% to 2%.
- Good Compatibility: An oil refinery was upgrading its automation system and integrated ICS TRIPLEX T8461 into the existing setup. Thanks to its compatibility with both ICS Triplex’s own control system and some third-party monitoring devices, the integration process was completed 30% faster than expected. Over the past 3 years of operation, the system has been running stably without any major compatibility issues.
- Reliable Operation in Harsh Environments: In a mining operation, where there is a lot of dust, vibration, and extreme temperature variations, ICS TRIPLEX T8461 has been operating steadily for over 2 years. Its failure rate is 80% lower than some similar products in the same environment. This reliability ensures that the data acquisition for the mining equipment remains accurate and stable, facilitating smooth production operations.
4. Application Areas and Case Studies
ICS TRIPLEX T8461 is applicable in a wide range of industries, including manufacturing (chemical, pharmaceutical, automotive), energy (oil and gas, power generation), and water treatment.
In a power generation plant, ICS TRIPLEX T8461 was applied to monitor the parameters of the turbines, such as steam pressure, temperature, and rotational speed. By accurately collecting these analog signals and transmitting them to the control system, the plant could optimize the operation of the turbines in real-time. For instance, when there was a sudden change in steam pressure, ICS TRIPLEX T8461 quickly detected the change and sent the data to the control system, which then adjusted the turbine’s operation to maintain stable power generation. This led to a 15% increase in power generation efficiency and a significant reduction in maintenance costs.
5. Competitor Comparison
When compared with similar analog input modules in the market, ICS TRIPLEX T8461 has several distinct advantages. In terms of measurement accuracy, its ±0.1% of FS precision is higher than many other products, providing more accurate data for process control. Its compatibility with a wide range of devices and systems gives it an edge, allowing for easier integration into different automation setups. Moreover, its ability to operate reliably in harsh environments is superior, reducing the risk of system failures and ensuring continuous operation.
6. Selection Suggestions
- Compatibility: When selecting ICS TRIPLEX T8461, carefully check its compatibility with your existing automation system. Ensure that the communication interface (PROFIBUS DP in this case) and the supported communication protocol are compatible with your control system and other devices. If you plan to expand your system in the future, consider whether the module can easily integrate with new sensors and other components.
- Installation Environment: Consider the installation environment where the module will be placed. If it is in a harsh environment, such as high temperature, high humidity, or a dusty area, ensure that ICS TRIPLEX T8461 can operate reliably. You may need to take additional protective measures, such as using shielded cables, installing the module in a sealed enclosure, or providing proper ventilation.
- Budget: Take your budget into comprehensive consideration. While ICS TRIPLEX T8461 offers high performance and reliability, you need to balance the purchase cost with the long-term benefits it provides. Consider not only the initial purchase price but also the costs of installation, maintenance, and potential upgrades. Compare the offers from different suppliers to find the best value for your investment.
7. Precautions
- Installation Precautions: Before installing ICS TRIPLEX T8461, make sure to turn off all power sources to avoid electric shock and damage to the module. Connect the power cables, input signal cables, and communication cables according to the installation instructions carefully. Ensure that all connections are secure and that the cables are properly routed to prevent interference. Also, ensure proper grounding of the module to protect against electrical surges.
- Operation Precautions: During operation, do not touch the internal components of ICS TRIPLEX T8461 to avoid damage. Regularly check the status indicators on the module to monitor its operation. If any abnormal indicators are observed, such as incorrect lights or error messages, stop the operation immediately and contact a qualified technician for inspection and repair.
- Maintenance Recommendations: Conduct regular maintenance on ICS TRIPLEX T8461. Check the power supply voltage regularly to ensure it is within the specified range. Inspect the cables for any signs of damage or wear and replace them if necessary. Clean the module periodically to remove dust and debris that may affect its performance. Update the module’s firmware according to the manufacturer’s recommendations to improve its functionality and reliability. Keep records of all maintenance activities for future reference.
Shanxi Runsheng Import and Export Co., Ltd. is your trustworthy partner. We provide sales and technical support for ICS TRIPLEX T8461 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
