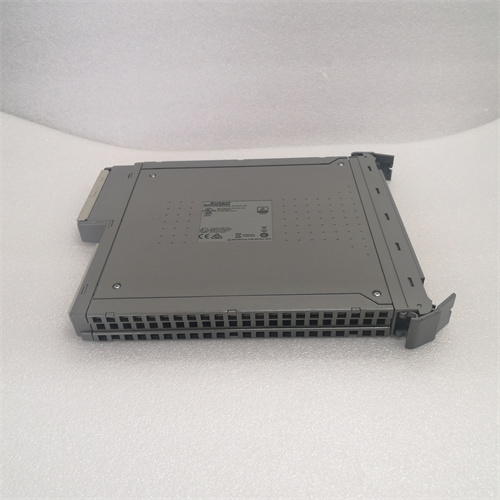

ICS TRIPLEX T8461

Description

6. Real – World Examples

• LNG Terminal: In an LNG terminal, the T8461 is used for the fire and gas safety system. The digital inputs are connected to a network of gas sensors and flame detectors installed throughout the terminal. If a gas leak or fire is detected, the module can quickly activate the fire suppression system, close the LNG storage tank valves, and trigger the alarm system. The TMR architecture ensures that the safety system remains operational even in the face of component failures, protecting the terminal and its personnel.
• Petrochemical Plant: In a petrochemical plant, the T8461 is used for the reactor protection system. It monitors the temperature, pressure, and level in the reactors. If any of these parameters exceed the safe limits, the module can immediately shut down the feed pumps and open the relief valves to prevent over – pressurization and potential explosions. The reliable operation of the T8461 is essential for the safe and continuous production in the plant.

3. Weight and Dimensions

• Weight: The ICS TRIPLEX T8461 weighs around 3.5 kg. Its weight is manageable for installation and maintenance in industrial control cabinets.
• Dimensions: It has dimensions of approximately 260 mm in length, 210 mm in width, and 160 mm in height. These dimensions allow it to fit into standard 19 – inch racks commonly used in industrial control systems.

4. Features

• Triple Modular Redundancy (TMR): The T8461 features a TMR architecture. It has three independent channels that perform the same control and monitoring functions simultaneously. The outputs of these channels are voted on, and the majority result is used. This redundancy ensures high reliability and fault tolerance, as the system can continue to operate even if one channel fails.
• Fault – Tolerant Design: The module is designed to be highly fault – tolerant. It can detect internal faults in real – time and take appropriate actions, such as isolating the faulty component or channel. This helps to maintain system integrity and prevent false trips.
• Configurable Logic: The T8461 allows for flexible configuration of control logic. Engineers can use programming tools to define custom safety algorithms based on the specific requirements of the application.

5. Stability and Reliability

• Robust Construction: The T8461 is built with a rugged enclosure that can withstand harsh industrial environments, including high temperatures, humidity, dust, and mechanical vibrations.
• High – Quality Components: It uses high – quality electronic components that are selected for their reliability and long – term performance. These components are rigorously tested to ensure they can operate under extreme conditions.
• Redundancy and Self – Diagnosis: The TMR architecture and built – in self – diagnosis functions contribute to the high stability and reliability of the module. The system can continuously monitor its own health and provide early warnings of potential failures.

1. Parameter Specifications

• Power Supply: The ICS TRIPLEX T8461 typically operates on a 24V DC dual – redundant power supply. This setup ensures continuous operation even if one power source fails. The power consumption is approximately 15 – 20W, which is relatively efficient considering its safety – critical functionality.
• Input/Output Configuration:
  • Digital Inputs: It comes with 32 digital inputs. These inputs are designed to accept signals from a wide range of industrial sensors, such as proximity sensors, limit switches, and flame detectors. The input voltage range is 24V DC ±10%.
  • Digital Outputs: There are 32 digital outputs. Each output can handle a maximum current of 2A, suitable for driving high – power devices like solenoid valves, contactors, and motor starters.
• Communication Interface: The module supports the Tricon proprietary communication protocol, enabling high – speed and reliable data exchange with other Tricon – based safety systems. It can also be configured to communicate with external devices via standard protocols like Modbus TCP/IP through optional interfaces.
• Response Time: The response time of the digital inputs and outputs is extremely fast, typically within 1 – 2 milliseconds. This rapid response is crucial for safety – critical applications where immediate action is required.

2. Applications

• Oil and Gas Industry: In offshore oil platforms and onshore refineries, the T8461 is used for emergency shutdown (ESD) systems. For example, it can monitor gas detectors. If a gas leak is detected, the module can quickly activate the ESD valves to isolate the affected area, preventing potential explosions.
• Power Generation: In nuclear and fossil – fuel power plants, the T8461 is employed for turbine protection systems. It monitors parameters such as turbine speed, vibration, and temperature. If any parameter exceeds the safe limit, the module can initiate an emergency shutdown to protect the turbine and other equipment.
• Chemical Industry: In chemical processing plants, the T8461 is used for process safety management. It can control the flow of chemicals in pipelines and reactors. If a chemical reaction goes out of control, the module can shut down the relevant valves and pumps to prevent accidents.
