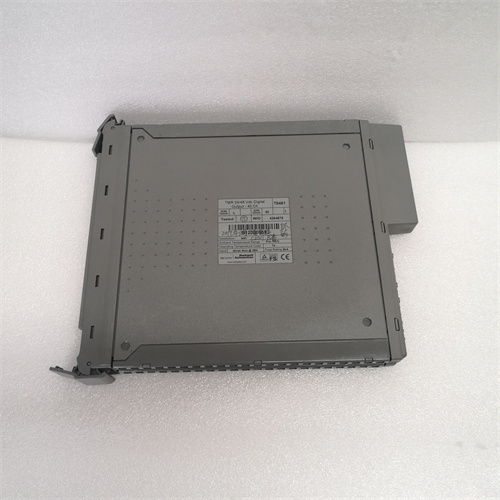

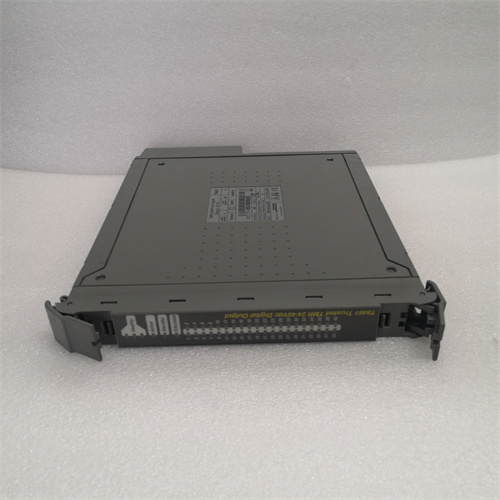

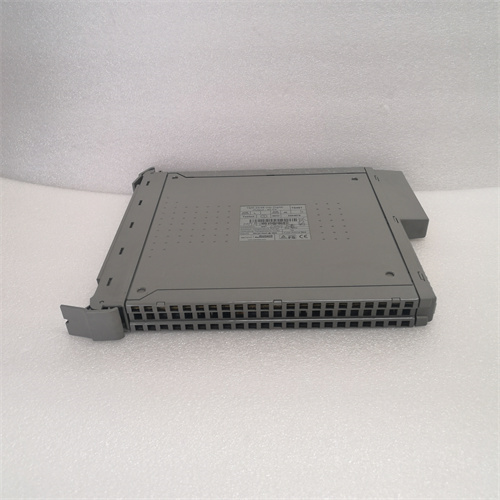

ICS TRIPLEX T8461

Description

argument
Power supply: The system power supply voltage range is 20 to 32 volts DC (Vdc), and the working output/field voltage range is 18 to 60 volts DC.
Output capability: The T8461 module provides a digital output signal and is capable of connecting up to 40 field devices.
Output channels: The module contains 8 outputs, each with an independent power pack of 5, providing greater flexibility and control.
Incident reporting: Support for on-board Incident Sequence (SOE) reporting with a resolution of 1 millisecond (ms) to help quickly locate problems.
specification
Type: TMR 24V DC digital output module.
Hot replacement capability: Can be hot replaced online, using a dedicated Companion (adjacent) slot or SmartSlot (one spare slot for multiple modules) configuration.
Diagnostics and self-tests: Comprehensive, automatic diagnostics and self-tests are provided, with automatic line monitoring for each channel.
Size and weight
Dimensions: Height 266 mm (10.5 in), width 31 mm (1.2 in), depth 303 mm (12 in).
Weight: Some say it weighs 1.149 kg (2.5 lb), but another says it weighs 0.13 kg, which may refer to a different model or configuration of the module.
trait
High reliability and stability: The ICS TRIPLEX family of products is known for its high reliability and stability for demanding industrial applications.
Precise control: Provides precise digital output signals that can accurately control the action and state of the actuator or device.
Fault-tolerant design: Circuit types with fault-tolerant, full triple optional circuits ensure stable operation of the system.
Communication interface: Usually equipped with communication interface, such as Modbus, Profibus, etc., in order to exchange data with other control systems or monitoring systems.
