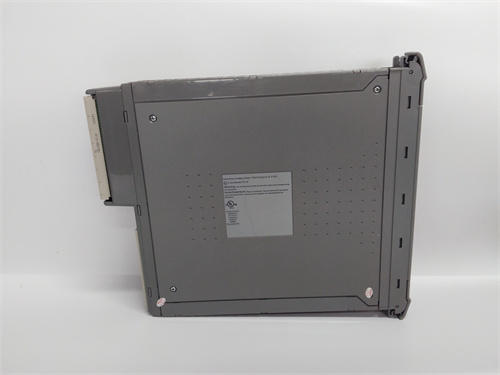

ICS TRIPLEX T8451

Description

Parameters and Specifications:

• Power Supply Voltage Range: 20 to 32V DC¹²
• Circuit Type: Fault-tolerant, fully triple modular redundant (TMR) design¹²³
• Monitoring Output Quantity: 40 independent channels¹²
• Independent Power Groups: 8, with 5 working outputs each¹²
• Field Voltage Range: 18 to 32V DC¹²
• Output Voltage Measurement Range: 0 to 32V DC¹²
• Maximum Tolerated Voltage: -1 to 40V DC¹²
• Rated Output Current (per channel per power group): 2A, total maximum 8A¹²
• Capacitance Range (Pre-release 3.5 version): 30-55uF¹²
• Minimum On-state Load Current: 50mA¹²
• Resistance in Off-state: 33Ω¹²
• Resistance in On-state: 0.6Ω¹²
• Output Short-circuit Protection: Electronic (latching)¹²
• Cross-talk between Channels: Less than -40dB¹²

Dimensions and Weight:

• The exact dimensions and weight of the T8451 module are not provided in the search results.

Series:

• TrustedTMR Processor Series⁶

Features:

• High Reliability: The TMR design provides high reliability and fault tolerance¹²³.
• Flexible Configuration: Supports 40 independent channels for monitoring and output¹².
• Wide Voltage Range: Operates within a wide voltage range of 20 to 32V DC¹²³.
• Electronic Short-circuit Protection: Ensures the module’s safety in case of an output short-circuit¹².
• Industrial Applications: Designed for use in harsh industrial environments³⁴.

Applications:

• ICS TRIPLEX T8451 digital module is suitable for applications requiring high reliability, fault tolerance, and precise digital output, such as industrial automation, aerospace, and rail transportation¹⁴. It can be used in various control systems for reliable and flexible digital signal processing⁴.
