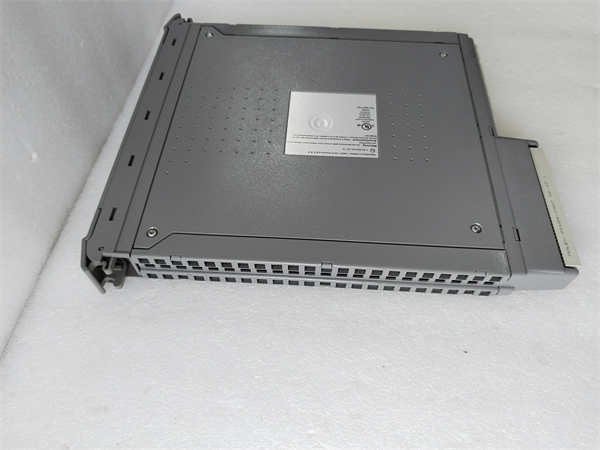

ICS TRIPLEX T8431

Description

argument
System power supply voltage range: 20 to 32V dc
Number of inputs: 40 channels
Input current range: 0-22mA
Input voltage range: 0-6 Vdc
Sample update time: 0.5 ms
Resolution: 3.9 microamps (1/256 mA)
Safety accuracy: +/ -1% of full scale (default threshold, above which 0x70nn series differential fault will occur)
Calibration accuracy: 0.03%
Recommended input channel calibration check interval: 2 years
Circuit type: Fault tolerant, full triple optional line monitoring
Power consumption: 15-18W
Self-check interval: 2 minutes
Operating temperature: -5 ° C to 60 ° C (23 ° F to 140 ° F)
Non-operating temperature: -25 ° C to 70 ° C (-13 ° F to 158 ° F)
Operating humidity: 10-95%RH Non-condensing
specification
I/O type: digital input, digital output, analog input, analog output
Number of channels: 32
Redundancy: Triple redundancy
Isolation voltage: 2500 Vrms
Size:
220 mm x 176 mm x 89 mm (one way of saying)
266 mm (10.5 in) x 31 mm (1.2 in) x 303 mm (12 in) (another word)
Weight: 1.149 KG (2.5 lb) or 1.2KG
trait
High processing power: The T8431 extension processor module has high processing power and computational performance, and can handle more complex control algorithms and logic operations.
Modular design: With modular design and expansion interface, the functions of the system can be flexibly expanded and customized to meet the needs of different application scenarios.
Hot backup and automatic switchover: Supports hot backup and automatic switchover to ensure continuous system running when a fault occurs.
Communication capability: It has a rich communication interface to support data exchange and communication with other modules and devices to achieve the coordination of the system.
Programmability and flexibility: Support a variety of digital input and output modes, programmable control logic, support remote monitoring and control, with a high degree of flexibility and scalability.
