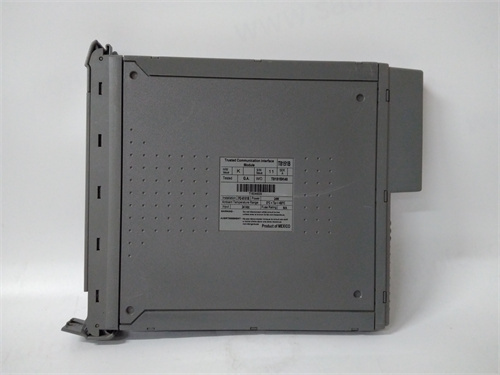

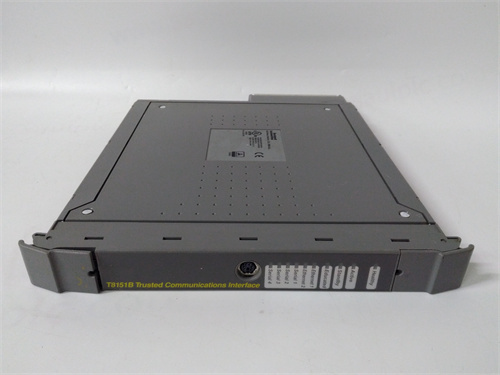

ICS TRIPLEX T8151B

Description

Parameter Specifications

Power Supply: 24V DC.
Power Consumption: 10W.
Input Voltage Range: 18-30V DC; 20-32V DC (backplane supply).
Operating Temperature: -20°C to 70°C.
Storage Temperature: -25°C to 70°C.
Relative Humidity: 10%-95% (non-condensing).
Baud Rates: 1200 baud to 115200 baud.
Data Transfer Rate: Ethernet ports support up to 100 Mbps.
Communication Protocol: Modbus RTU, Open Modbus TCP, Trusted Peer to Peer, etc.

Applications

Oil and Gas Industry: It is used in offshore production platforms to monitor and control wellheads, separators, compressors and pumps.
Chemical Industry: In chemical production plants, it is used for process control and safety interlocks, controlling chemical reaction processes.
Railway Transportation: It can be used for signal control and train operation monitoring in railway and metro systems.
Mining Industry: It is used to control and supervise the operation of mining machines in mining facilities.

Weight and Dimensions

Weight: 0.7 kg to 1.14 kg.
Dimensions: 140mm×95mm×82mm or 200mm×100mm×55mm.
Features
Communication Capability: Supports multiple communication protocols and has dual Ethernet ports and four serial ports.
Remote Management: Allows remote monitoring and diagnosis, facilitating convenient maintenance.
Data Security: Includes data encryption and security protocols to protect data.
Easy Configuration: Has an easy-to-configure interface for convenient setup.

Stability and Reliability

Redundancy Design: Adopts triple modular redundancy (TMR) architecture.
High-Quality Components: Made of high-quality materials, suitable for harsh industrial environments.
Built-in Diagnostics: With extensive self-diagnostics and system health monitoring functions.

Practical Case

In an offshore oil and gas production platform, the T8151B is used to connect various sensors and control equipment. It monitors parameters such as pressure and temperature in real time and transmits data to the central control system. When abnormal data is detected, it quickly sends out alarms and executes corresponding control commands through reliable communication and control, ensuring the safe and efficient operation of the production platform.
