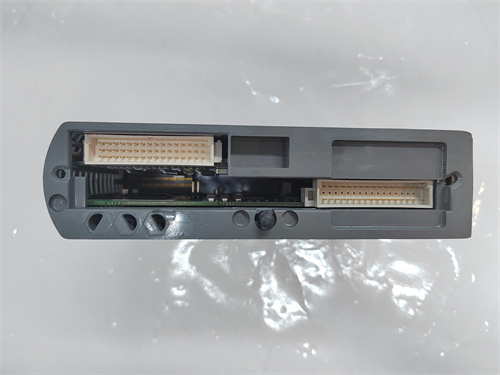

ICS TRIPLEX 9451

Description

1. Product Description

2. Product Parameters

• Operating Voltage: 24 VDC5
• Number of Output Channels: 165
• Working Temperature: – 20 ℃ – + 60 ℃5
• Relative Humidity: 5% – 95%5
• Installation Method: DIN rail installation5
• Protection Level: IP205
• Authentication: IEC 61508, IEC 61131 – 25
• Communication Interfaces: Ethernet, RS – 485, USB

3. Advantages and Characteristics

• High Reliability: The ICS Triplex 9451 adopts a redundant design, which can quickly detect and locate faults and switch to backup components in the event of a fault without interrupting the entire operation, ensuring the continuous and stable operation of industrial processes4. For example, in a chemical plant, even if a certain component fails, the redundant design of this module can ensure that the chemical production process will not be affected, thus improving the safety and reliability of the entire production system.
• Easy to Integrate: It is equipped with a variety of communication interfaces such as Ethernet, RS – 485, and USB, which can be seamlessly integrated with various devices and systems, facilitating communication and data exchange. In an industrial automation production line, it can be easily connected with other control equipment and sensors to form a complete control system.
• Compliance with International Standards: The product is designed and verified to meet international safety standards and has certifications such as CE, UL, and CSA, which guarantees a high level of safety and quality. This allows it to be widely used in various industries around the world without worrying about compliance issues.

4. Application Fields and Application Cases

• Application Fields: The ICS Triplex 9451 is suitable for a variety of industries and scenarios, such as the process industry, petrochemical industry, power industry, etc5. In the process industry, it is used in safety interlock systems such as emergency shutdown and leak detection; in the petrochemical industry, it is used for safety control in the production process; in the power industry, it is used for the safety protection of power systems5.
• Application Case: In a large – scale oil refinery, the ICS Triplex 9451 is used in the control system of the refining process. It receives digital signals from the central controller and accurately controls the opening and closing of valves and the operation of pumps to ensure the stable operation of the refining process. At the same time, through its redundant design and high – reliability performance, it can quickly respond to various fault conditions, ensuring the safety and continuity of the production process. For example, when a sensor fails to detect the temperature of the refining process, the 9451 module can still ensure the normal operation of the system through redundant signals, and send out an alarm signal to prompt the operator to repair it in time.

5. Comparison with Similar Products

6. Selection Suggestions

• Compatibility: When selecting the ICS Triplex 9451, it is necessary to ensure that it is compatible with the existing controller and other equipment in the system. Check whether the communication interface, protocol, and voltage level of the module are consistent with the system requirements.
• Installation Environment: Consider the installation environment of the module, including temperature, humidity, and vibration conditions. The ICS Triplex 9451 has a working temperature range of – 20 ℃ – + 60 ℃ and a relative humidity range of 5% – 95%. Make sure the installation environment is within this range to ensure the normal operation of the module.
• Budget: Although the ICS Triplex 9451 provides high – quality performance and reliability, it is also necessary to consider the budget. Evaluate the cost – effectiveness of the product based on the actual needs of the project to ensure that the selected module can meet the requirements of the project without exceeding the budget.

7. Precautions

• Safety Specifications: When installing and using the ICS Triplex 9451, it is necessary to comply with relevant safety standards and regulations. Make sure that the power supply is properly connected and grounded to avoid electric shock and other safety accidents.
• Maintenance Recommendations: Regularly check the operating status of the module, including whether the connection is loose, whether there is overheating, and whether there is abnormal noise. Clean the module regularly to prevent dust and dirt from affecting its performance. In addition, keep the relevant technical documentation and manuals of the module for future reference and maintenance.
