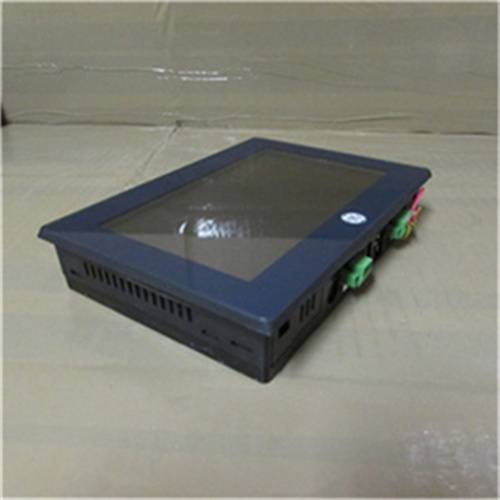

IC755CSW07CDA

Description

series
The IC755CSW07CDA is part of the QuickPanel+ family and is manufactured by GE Fanuc (or Emerson Automation, as GE Fanuc’s business in industrial automation was later acquired by Emerson).
trait
Hd display: The 7-inch widescreen display provides clear, detailed images.
Multi-touch: Support multi-touch operation, improve the convenience and intuitiveness of the operation.
Durability: The touch screen is designed to withstand harsh conditions such as dust, vibration and shock in industrial environments.
Integration: Tightly integrated with the rest of the device, providing a user-friendly configuration environment and tools with the pre-installed Windows Compact Embedded 7 operating system.
Certification: Has passed the UL, CE and EN standards certification.

Parameters and specifications
Resolution: 800 x 480 pixels.
Display: Built-in 7-inch widescreen display.
Input power supply voltage: +24 VDC±20%, accessed through a 3-pin Phoenix connector.
Maximum power consumption: 15 watts.
Cooling method: natural convection.
Operating system: Windows Compact Embedded 7 is pre-installed.
Processor: Intel Freescale i.MX535 1 GHz ARM Cortex A8 processor.
Memory: 512 MB DDR2 SDRAM, 256 MB SLC NAND flash, and 512 KB SRAM.
Communication interface: Ethernet I/P communication port, RS232 communication interface (some information mentions RS485 interface, but most information is RS232).

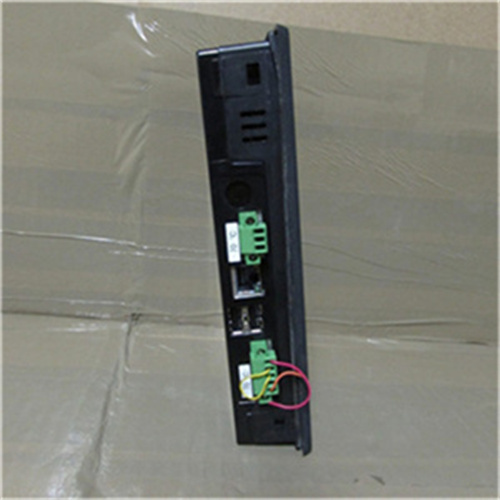

Other ports: Three USB ports, one SD/SDHC removable card slot.
Size and weight
Weight: Approximately 1.32Kg

effect
The IC755CSW07CDA is primarily used to provide real-time monitoring and control of connected machines or processes through its display and multi-touch operator input interface.
The device can also act as a controller, machine gateway and data history logger, addressing the need for stability, reliability and ease of use in industrial automation.
