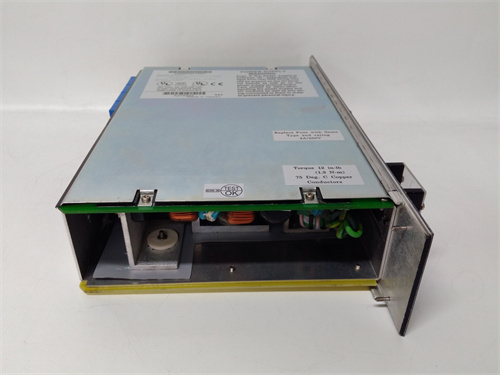

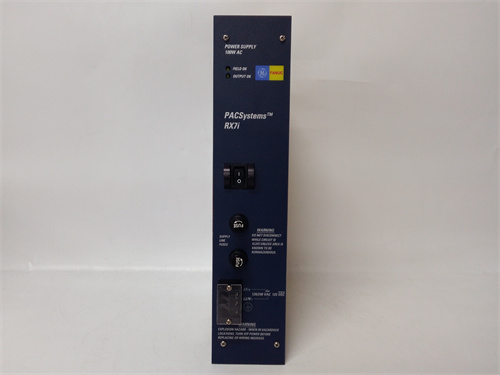

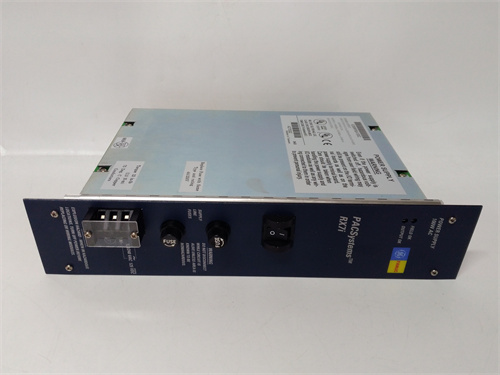

IC698PSA100

¥3,265.00

‌Specifications and Parameters‌:

‌Power Output‌: Provides +5 VDC, +12 VDC, and -12 VDC power to modules on the backplane, with a total maximum output power of 100 watts.
‌Voltage Range‌: Operates with an input voltage range of 85 to 264 VAC (nominal 120/240 VAC) or 100 to 150 VDC (nominal 125 VDC).
‌Frequency‌: Accepts input frequencies from 47 to 63 Hz.
‌Protection Features‌: Includes active overvoltage and overcurrent limitation, as well as protection against overheating and fault conditions.
‌Isolation Rating‌: Features a 1500 VDC isolation rating.

‌Function‌:

Acts as a power supply unit for RX7i series modules, providing stable DC voltages necessary for their operation.
Supplies logic level sequencing signals to the system.

Category:

Description

Incorporates safety features to prevent damage to connected modules in case of power fluctuations or faults.

‌Weight and Dimensions‌:

‌Weight‌: Approximately 110 grams to 300 grams, depending on packaging and accessories (note: weight information varies across sources, so this is an estimated range).
‌Dimensions‌: Typically measures approximately 146mm x 70mm x 33mm (subject to minor variations based on manufacturer’s specifications).

‌Specifications and Parameters‌:

‌Power Output‌: Provides +5 VDC, +12 VDC, and -12 VDC power to modules on the backplane, with a total maximum output power of 100 watts.
‌Voltage Range‌: Operates with an input voltage range of 85 to 264 VAC (nominal 120/240 VAC) or 100 to 150 VDC (nominal 125 VDC).
‌Frequency‌: Accepts input frequencies from 47 to 63 Hz.
‌Protection Features‌: Includes active overvoltage and overcurrent limitation, as well as protection against overheating and fault conditions.
‌Isolation Rating‌: Features a 1500 VDC isolation rating.

‌Function‌:

Acts as a power supply unit for RX7i series modules, providing stable DC voltages necessary for their operation.
Supplies logic level sequencing signals to the system.
