IC698PSA100

Description

series

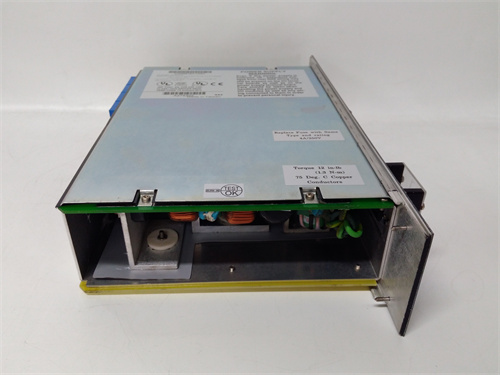

The IC698PSA100 is a multifunctional power module produced by GE Fanuc (now Emerson Automation) for the RX7i series.
trait
Versatility: Provides +5 VDC, +12 VDC, and -12 VDC power supplies, as well as logic level sequence signals.
Stability: It has strong computing power and stable performance, and can perform various control algorithms and data processing tasks.
Communication capability: With strong communication capability, you can exchange high-speed and stable data with other industrial automation equipment to achieve real-time monitoring and control.
Protection: Overcurrent, overheat and overvoltage fault conditions are protected.

specification
Traversal time: Minimum 15 milliseconds.
Hold time: Minimum 5 ms.
Protection features: Active overvoltage and overcurrent limits, especially 5.7 to 6.7 volts overvoltage protection at +5v DC.
Operating temperature: 0 to 60°C (no forced air cooling).
Size and weight
Body size: According to some information, the body size is 1467033mm (may include packaging or case size).
Handle size: 1125316mm (may refer to some parts or accessories on the module).
Instrument weight: approx. 110 g (may refer to the weight of a test instrument or accessory related to the IC698PSA100). The specific weight of the IC698PSA100 module itself is not explicitly mentioned in the search results.

argument
Power input: Support 85 to 264 VAC (nominal voltage 120/240 VAC) and 100 to 150 VDC (nominal voltage 125 VDC) at 47 to 63 Hz.
Maximum output power: 100 watts, total power distributed in three output terminals.
Output voltage:
+5 VDC: 4.875 to 5.25 volts, 0-20 amps.
+12 VDC: 11.64 to 12.6 volts, 0-2 amps.
-12 VDC: -12.60 to -11.64 volts, 0-1 amps.
