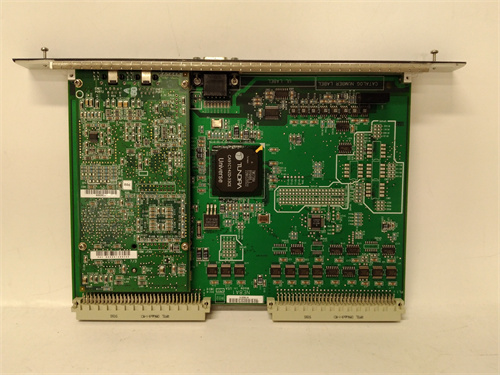

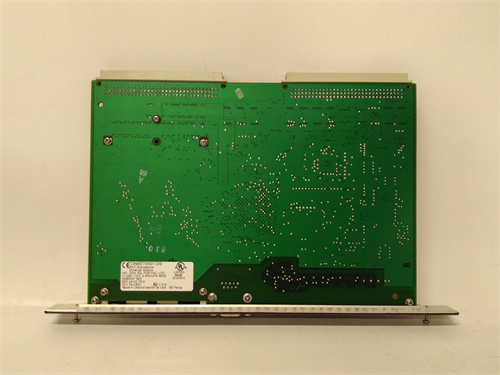

IC698ETM001

Description

3.‌Dimensions & Weight‌:
–‌Approximate Dimensions‌ (as an infrared measurement device): 125mm x 68mm x 22mm12
–‌Weight‌ (as an infrared measurement device): Approximately 110 grams12
–‌Weight‌ (when used as an Ethernet interface module): Approximately 0.34 kilograms34

4.‌Series‌:

• Part of GE’s product line for industrial automation and control systems53

5.‌Features‌:
–‌Modular Design‌: Allows for easy integration into existing systems and customization for specific applications5
–‌Communication Capabilities‌: Provides TCP/IP communication services, enabling seamless integration with other GE smart platform controls and hosts3
–‌LED Indicators‌: Equipped with LED indicators for monitoring the module’s operational and communication status34
–‌Redundancy Support‌: Allows for redundant IP addressing, ensuring high availability in critical applications3

6.‌Functions‌:
–‌Infrared Measurement‌: Used for measuring infrared radiation intensity and evaluating the performance of solar devices, insulation films, and more1
–‌Ethernet Communication‌: Serves as a high-performance Ethernet interface module, enabling efficient communication within GE’s RX7i control systems34
–‌Industrial Automation‌: Used in various industries such as manufacturing, power generation, building automation, and water treatment for monitoring and controlling various processes

1.‌Parameters‌:
–‌Measurement Accuracy‌: ±(4% FS + 2 digits), where FS stands for Full Scale1
–‌Spectral Response‌: 1000nm – 1700nm, with a center wavelength of 1400nm1
–‌Measurement Range‌:
– ×1 (0-1999 W/m²)
– ×10 (2000-19990 W/m², display value multiplied by 10)12

2.‌Specifications‌:
–‌Power Source‌: 9V alkaline battery (model 6F22)1
–‌Current Consumption‌: 2.7mA12
–‌Ethernet Processing Speed‌: 200 MHz (when used as an Ethernet interface module)3
–‌Operating Temperature‌: 0°C to 50°C (when used as an infrared measurement device)1; 0°C to 60°C (when used as an Ethernet interface module)34
