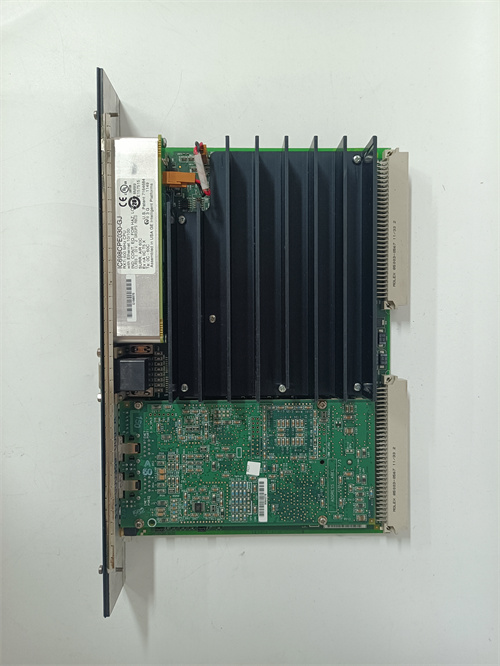

IC698CPE030-GJ

Description

1.‌Parameters and Specifications‌:

• Model Number: IC698CPE030-GJ, indicating it belongs to the RX7i series.
• Processor: Equipped with a Pentium-M microprocessor, providing high-performance processing capabilities.
• Memory: Features 64 MB of user memory and user flash memory for data storage and retrieval.
• Communication: Supports communication via embedded Ethernet port, serial ports (RS-485, RS-232, and RS-232 Ethernet site manager), and SNP slave protocol.

2.‌Dimensions and Weight‌:

• Dimensions: While exact dimensions may vary, the unit is typically designed for rack-mounting using VME64 standard format, indicating a standard industrial size.
• Weight: Approximately 2.40 pounds, making it suitable for installation in various industrial environments1.

3.‌Series‌:

• Part of the RX7i series, designed for real-time control processes and material handling structures.
•

4.‌Features‌:

• Non-volatile Flash Memory: Preserves data even during power outages.
• Large Capacity Memory Access: Facilitates efficient data handling and program execution.
• Configurable Data/Program Memory: Allows for customization to suit specific application requirements.
• Auto-Positioning Symbol Variables: Enhances programming flexibility and efficiency.
• Battery-Backed User Memory: Maintains program and data storage, even when power is off, and supports the calendar clock during power outages.

5.‌Functions and Role‌:

• As the CPU for the RX7i series, the IC698CPE030-GJ is responsible for executing control programs, processing input/output (I/O) signals, and communicating with other system components.
• It performs comprehensive self-diagnostics upon power-up, ensuring system integrity and reliability.
