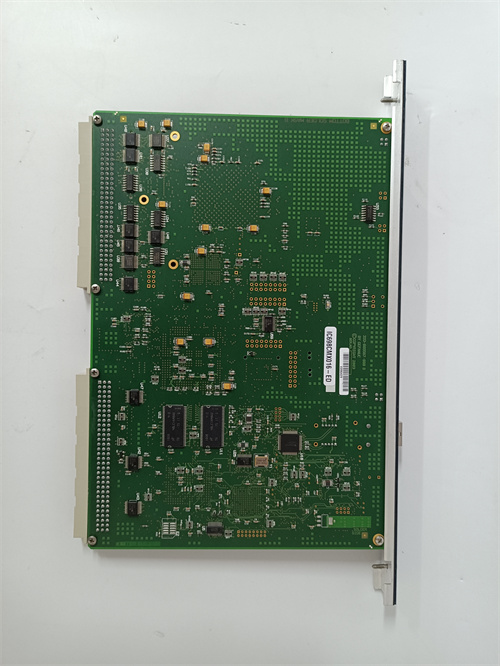

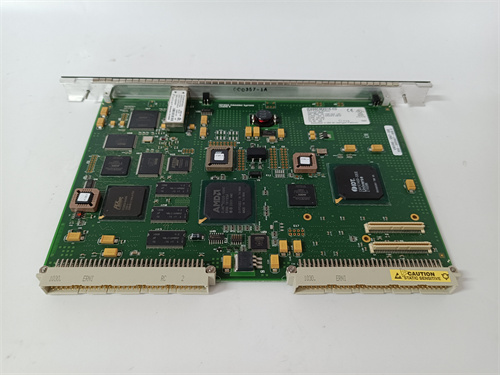

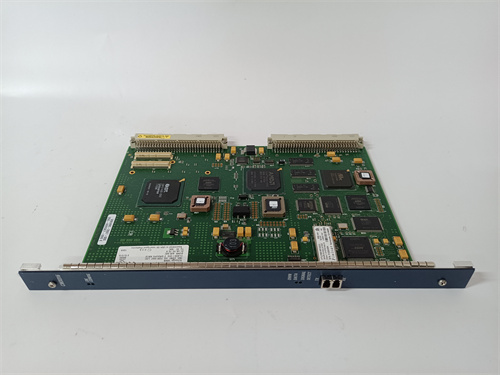

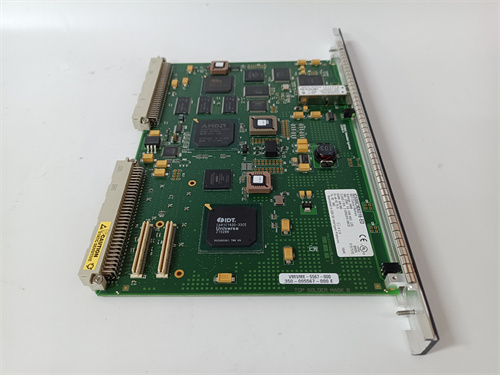

IC698CMX016-ED

Description

argument
Memory Capacity: 16MB SDRAM reflected memory
Operating voltage: +5VDC
Current requirement: 1.8 amps
Data transfer rate:
Maximum network transfer rate: 43 MB/ s (4-byte packets) to 174 MB/ s (64-byte packets)
Data transfer speed: 2.12 Gbaud
Transfer rate range: 6.2 megabytes per second to 3.2 megabytes per second (depending on the density of redundant information)
Dynamic packet size: 4-64 bytes
Number of nodes supported: Up to 256 nodes per network
Maximum transmission distance: 300 meters (or 984.25 feet) of multimode fiber media
specification
Module type: Control memory switch module
Platform: PACSystems RX7i platform
Manufacturer: Currently owned by Emerson Automation, it was previously manufactured by GE Intelligent Platforms (GE IP)
Slot requirements: Need to be installed on the mainframe and connected to slot 3 or 4
Interface type: LC optical fiber port
Size and weight
Size: According to some information, its external size is 55105120mm
Parity check: The parity check function is enabled
Redundant transmission mode: Supports redundant transmission mode
LED status indicators: The front panel is equipped with LED status indicators such as OK, configuration, own data and signal detection
Daisy chain connection: A maximum of 256 nodes can be connected through the Daisy chain of the FO cable
User configurable: Provides user configurable VME bus output
