Description
Parameters and specifications:

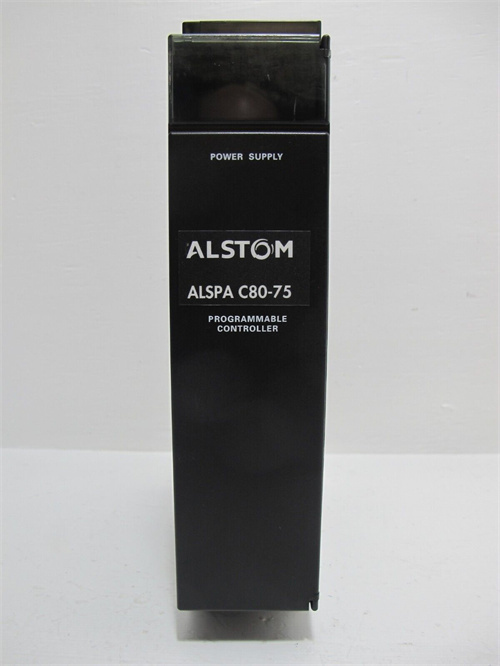

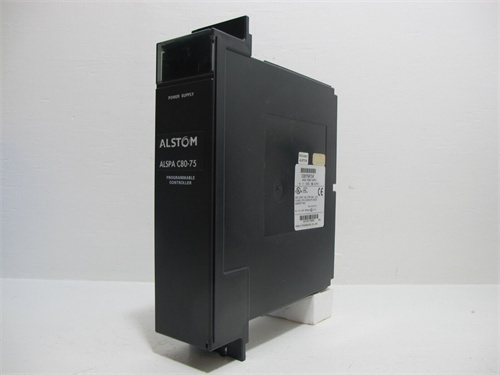

Brand: GE Fanuc Automation
Model: IC697PWR724
Nominal rated voltage: 24 volts DC
Input voltage range: 18-32 volts DC
Input power: 160 watts
Input surge energy: large 22 joules
Output power: up to 90 watts
Output voltage: 5, 12 and -12 volts DC
Crossing time: 10 ms (at 20 volts DC)
VME: compatible
Temperature range: 0-60 degrees Celsius
Overvoltage limit: 5 volts DC
Size and weight:
Weight: 2.46 pounds
Features:
Multivoltage output: Output voltages of 5, 12 and -12 volts DC are available to accommodate different operating and logic level sequencing signals.
Rack compatibility: The module is designed so that it can be inserted into the rack, particularly the slot on the left side, and connected via a 48-pin backplane mount connector on the rack.
Over voltage and over current protection: The module has over voltage and over current protection functions to improve system stability and security.
Functions:
Power supply: IC697PWR724 power module is mainly used to provide stable and reliable DC power supply for equipment in industrial automation system.
Multi-rack power supply: It can operate in a single rack application, can power 2 racks at a time, as long as the total load is within the rated specification, and is interconnected with the two racks by cable.
Industrial application: The power module is widely used in steel, electric power, metallurgy, chemical, petrochemical and many other industries, for turbine, compressor, fan, water pump, coal mill, gear box, motor and other large and medium-sized rotating machinery vibration monitoring and other industrial automation field.
