Description
argument
Processor speed: 64 MHz.
Bits: 32-bit floating point.
Memory: 1 Megabyte (512 Kbytes of which are available for the user’s applications and data).
Battery support: Provides 1 Mbyte memory for battery backup.
Floating-point arithmetic: Supported.
Maximum I/O points: up to 12K discrete input and output (arbitrary mixing – simplex mode only); 2048 votes discrete input, 2048 votes discrete output; Up to 8K analog input (simplex mode only) and 8K analog output (simplex mode only); 1024 voting simulation inputs.
Processing speed: 0.4 microseconds per Boolean function.
specification

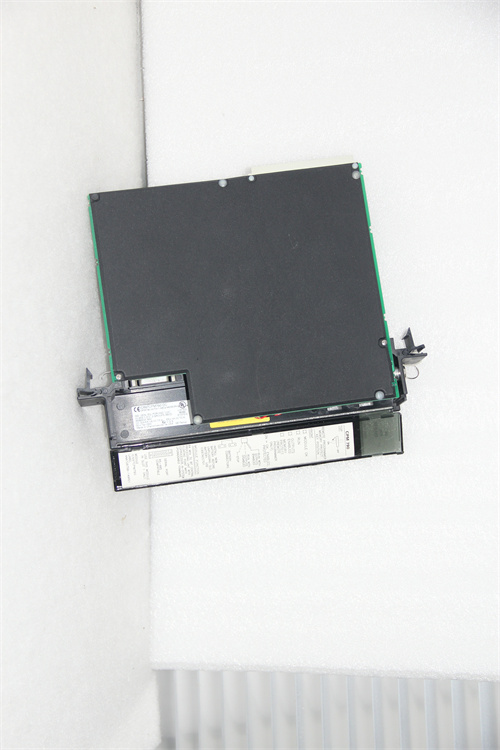

Product type: Single slot programmable controller CPU.
Microprocessor: 80486DX2.
Programming software: Programmed by MS-DOS or Windows software products, such as Windows 95 or Windows NT.
Communication: Programming via Ethernet TCP/IP or SNP ports.
Size and weight
Dimensions: 96mm x 48mm x 16mm.
Weight:
4.00 pounds (another term is 1.2kg or 2KG
trait
Battery backup: Built-in lithium battery to maintain calendar clock operation, data storage and program storage.
Firmware upgrade: Firmware can be upgraded in the system without removing the module or replacing the EPROM.
Multimode operation: It can be controlled by a three-speed run/stop switch or remotely controlled by a connected programmer and programming software.
Security: Program and configuration data can be locked with a software password or manually with a memory-protected key switch.
Status indicator: The status of the CPU is displayed by four green LED indicators on the front of the module.
