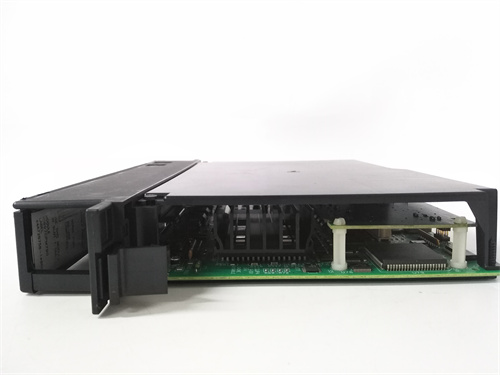

IC697CPM790

Description

Parameter Specifications

Power Supply
It operates on a 24V DC power supply, with an acceptable voltage range of ±10%. This provides stable power for the module’s operation in industrial environments.
Processor
Equipped with a high – performance processor. The CPU clock speed is fast, enabling quick execution of control programs. It can handle complex logic and data processing tasks efficiently.
Memory
Has a significant amount of memory. There is typically 256 MB of RAM for runtime data storage and 1 GB of non – volatile flash memory for storing programs, configuration data, and historical records.
Communication Interfaces
Supports multiple communication protocols. It has Ethernet ports for high – speed network communication, compatible with Ethernet/IP and Modbus TCP. There are also serial ports (RS – 232/RS – 485) for legacy device connectivity, supporting Modbus RTU.

Uses

Automation Control
Serves as the central processing unit in a programmable logic controller (PLC) system. It executes control logic based on input signals from sensors and sends appropriate output signals to actuators, enabling the automation of industrial processes.
Data Acquisition and Monitoring
Collects data from various field devices such as temperature sensors, pressure sensors, and flow meters. It can monitor these values in real – time and trigger alarms if predefined thresholds are exceeded.
Communication and Integration
Facilitates communication between different devices in an industrial network. It can integrate with human – machine interfaces (HMIs), supervisory control and data acquisition (SCADA) systems, and other PLCs for centralized control and monitoring.

Weight and Dimensions

Weight
Approximately 1.2 kg, which is relatively light for easy installation and handling.
Dimensions
It has a compact size. The length is about 170 mm, the width is around 100 mm, and the height is approximately 70 mm, allowing it to fit into standard control cabinets.

Characteristics

High Performance
The powerful processor and large memory capacity enable it to handle complex control tasks and high – speed data processing, ensuring efficient operation of industrial systems.
Reliability
Built with high – quality components, it can operate in harsh industrial environments. It has a wide operating temperature range from – 20°C to 60°C and is resistant to vibration and electromagnetic interference.
Flexibility
The multiple communication interfaces and support for various protocols make it highly flexible for different application requirements and system integrations.

Application Areas

Industrial Manufacturing
Used in manufacturing plants for controlling production lines, robotic operations, and quality control processes.
Power Generation
Applied in power plants for monitoring and controlling power generation equipment, such as turbines and generators.
Water Treatment
In water treatment facilities, it helps in controlling water purification processes, pump operations, and valve control.
