Description
Operating temperature range:
Analog versions are 0°C to 60°C.
Digital versions range from -40°C to +70°C.
Size and weight
Analog version dimensions: Height 100 mm, width 140 mm (length not mentioned).
The digital version measures 7.87 inches (200 mm)x 3.94 inches (100 mm)x 1.57 inches (40 mm) and weighs 2.42 pounds (1.1 kg).
series
Part of GE Fanuc’s Series 90-70 platform or 90-30 series PLC system.
trait
Analog version: Suitable for various industrial automation application scenarios, such as manufacturing, energy management, process control, etc.
Digital version:
Provides 32 configurable channels that can be used as input or output, providing versatility for a variety of applications.
Supports high data transfer rates and can handle demanding I/O requirements.
Receiver/source compatibility for receiver and source type I/O devices, compatible with a wide range of sensors and actuators.
Rugged construction made of durable materials to withstand harsh industrial environments.
Easy to install and maintain, designed for simple installation and maintenance with minimal downtime.
effect

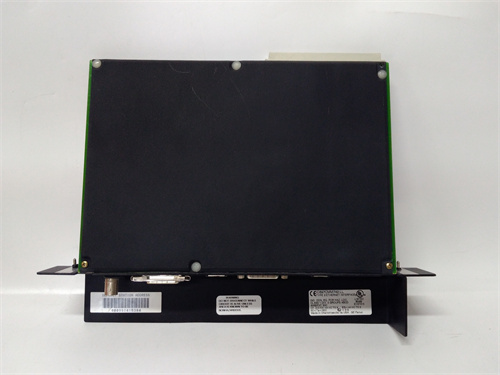

In both analog and digital versions, the IC697CMM742 is used in industrial automation control systems to achieve precise control of various equipment or systems by receiving and sending signals (analog or digital).
Parameters and specifications
Input/Output type:
In some messages, it is described as an analog input/output module for receiving and sending analog signals (such as current signals 4-20 mA), mounted on the Series 90-70 substrate.
Among other information, it is described as a 32-channel digital input/output (DIO) module used in GE Fanuc 90-30 series PLC systems.
Number of input/output channels:
Up to 16 input/output channels (analog version).
32 digital I/O channels (digital version).
Power supply voltage:
The analog version is 24 VDC.
The digital version has an input/output voltage of 24 VDC and A current of 0.5 A per channel.
