IC697CMM742

Description

Parameters and specifications
Model: IC697CMM742.
Main application: This module is mainly used in the 90-70 series PLC (Programmable logic controller) system.
Network Protocol support: Supports a variety of network protocols, such as IEEE 802.2 Logical Link Control Class I LAN and IEEE 802.3 Media Access Control 10Mbps LAN.

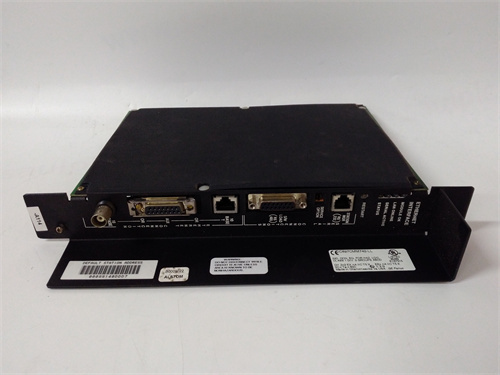

Network port: It has three network ports, including 10Base-T RJ-45 port, 10Base2 BNC port and AUI port.
Communication rate: The maximum communication rate of 1Mbps is supported.
Supported communication protocols: Modbus RTU, Modbus ASCII, Profibus DP, etc.
Voltage and current: Absorb 2 amps of large backplane current at +5 volts DC and 0.5 amps of large backplane current at +12 volts DC.
Operating voltage range: 85~264VAC.
Output voltage: 24VDC.
Output power: 360W.
Input current: 500mA.
Size and weight
Dimensions: 115mm x 48mm x 150mm
series
Series: GE Fanuc 90-70 series PLC system Ethernet interface module.
trait
Multiple Network Protocol support: A wide range of network protocol support is provided to help establish communication between PLCS and Ethernet local area networks (Lans).
Flexible network connection options: With three different network ports, users are provided with flexible network connection options.
High communication rate: up to 1Mbps communication rate is supported to ensure efficient data transmission.
Multi-protocol support: In addition to Ethernet protocol, it also supports Modbus RTU, Modbus ASCII, Profibus DP and other communication protocols.
Software Configuration and Update: Has an RJ-11 serial RS-232 local station manager port and a 15-pin Type D RS-485 software port for specific software configuration and update functions.
effect
Ethernet communication: As an Ethernet interface module, it allows the PLC to communicate with the Ethernet local Area Network (LAN) to achieve remote data access, monitoring and control functions.
Industrial Automation Integration: By providing flexible network connectivity options and multi-protocol support, the IC697CMM742 module helps integrate PLCS into a wider range of industrial automation systems.
