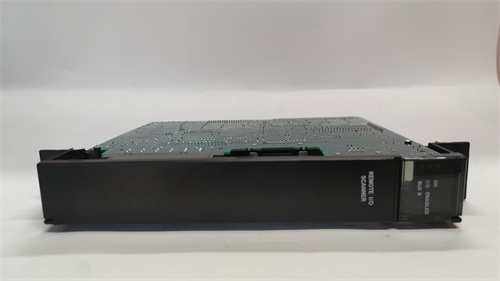

IC697BEM733

Description

trait
Compact design: Suitable for space-limited applications, easy installation and wiring.
Flexible I/O configuration: Supports a variety of I/O modules, including digital input/output, analog input/output, etc. Users can choose different types of modules according to specific application requirements.
A variety of communication interfaces: support serial port, Ethernet and other communication interfaces, can be used for data exchange and communication with other devices, to achieve system integration and real-time monitoring.
Remote I/O Scanning: Allows installation of remote I/O stations up to 7,500 feet or 2,275 meters from the primary controller.
High reliability and flexibility: Stable performance and reliability ensure the normal operation of the system, and provide a variety of expansion options to meet the needs of different applications.

Parameters and specifications
I/O points: Can be configured to handle any combination of discrete I/O and analog I/O, with a maximum number of 1024 discrete input, 1024 discrete output, 64 analog input words, and 64 analog output words.
Communication interface: Has a 15-pin RS-422/485 compatible serial port and a 9-pin IC66 handheld monitor port. Dedicated IC66 bus terminals that support redundancy.
Compatibility: Compatible with handheld monitors version 4.0 or later, directory number IC660HHM501G; CPU firmware version 2.0 or higher, MS-DOS programming software version 3.0 or higher, bus controller version 3.0 or higher if used with IC697 PLC module.
Size and weight
Size: According to the search results, the IC697BEM733 measures approximately 170mm x 105mm x 32mm.
Weight: About 120g.
