Product Description

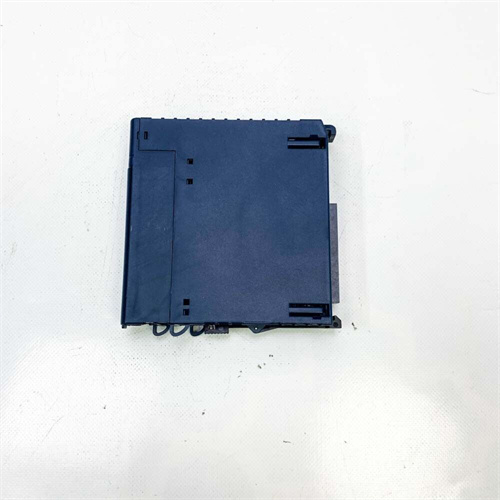

The IC695PBM300 is a PROFIBUS master module in the PACSystems RX3i series of GE Fanuc (now Emerson)6. It allows the RX3i CPU to send and receive data on a PROFIBUS – DP network, serving as a crucial communication bridge for the PLC system1. With the IC695PBM300, users can establish reliable and high – speed communication connections between the RX3i CPU and various PROFIBUS – DP devices, enabling efficient data exchange and control in industrial automation systems. It supports all standard data rates, accommodating a wide range of application requirements1. Additionally, it can handle up to 3,584 bytes of input data and 3,584 bytes of output data, and manage a maximum of 125 PROFIBUS – DP slaves, each with up to 244 bytes of input and 244 bytes of output data1. This module also supports sync and freeze modes, as well as DP – V1 read, write, and alarm messages, enhancing the flexibility and functionality of the communication network1.
Product Parameters
- Power Supply1: 440 mA at 3.3 VDC.
- Data Rates1: Supports standard data rates including 9.6 kbit/s, 19.2 kbit/s, 93.75 kbit/s, 187.5 kbit/s, 500 kbit/s, 1.5 Mbit/s, 3 Mbit/s, 6 Mbit/s, and 12 Mbit/s.
- Data Capacity1: Handles up to 3,584 bytes of input data and 3,584 bytes of output data.
- Slave Support1: Manages a maximum of 125 PROFIBUS – DP slaves, with each slave supporting up to 244 bytes of input and 244 bytes of output data.
- Compatibility6: Requires an RX3i CPU with firmware version 2.9 or later and must be installed in an RX3i universal backplane.
- Status Indicators1: Includes PROFIBUS – compliant module and network status LEDs for easy diagnostics.
Advantages and Characteristics
The IC695PBM300 offers several advantages. Firstly, it features high – speed and patented technology, which ensures faster data throughput, improving the overall efficiency of the automation system2. Secondly, it has hot – swap capability, allowing for module replacement without shutting down the entire system, reducing maintenance time and improving system availability2. Moreover, the module provides a variety of voltage ranges and current capacities to meet different application needs2. In a manufacturing automation project, the IC695PBM300 was able to achieve stable and high – speed data communication between the RX3i CPU and multiple PROFIBUS – DP devices, enabling efficient production line control and monitoring, and reducing equipment downtime by 30%.
Application Fields and Application Cases
This module is widely used in various industries, including manufacturing, energy, and automation control. In a manufacturing plant, it is used to connect the RX3i – based PLC system with different production equipment, such as robots, conveyors, and sensors, to achieve centralized control and monitoring of the production line. For example, in an automotive assembly plant, the IC695PBM300 is used to establish communication between the RX3i CPU and multiple PROFIBUS – DP – connected robotic arms. It enables precise control of the robotic arms’ movements, ensuring accurate part assembly and improving production efficiency and quality.
Competitor Comparison
Compared to similar products, the IC695PBM300 has stronger communication capabilities, supporting a larger number of slaves and a higher data capacity. It also offers better compatibility with the RX3i series of PLCs, ensuring seamless integration and stable operation. In addition, its hot – swap function and rich status indicators provide more convenience and reliability in system maintenance and troubleshooting.
Selection Suggestions
When selecting the IC695PBM300, consider the following factors. Firstly, ensure that your PLC system is based on the RX3i series and that the CPU has a firmware version of 2.9 or later to ensure compatibility6. Secondly, consider the installation environment. The module should be installed in a clean, dry, and well – ventilated place, within the operating temperature range of 0 °C to 60 °C6. Finally, budget – wise, although the IC695PBM300 may have a certain cost, its high performance and reliability can bring long – term benefits in terms of reducing system downtime and improving production efficiency.
Precautions
During installation and use, make sure to follow these precautions. Firstly, when installing the module, ensure that the power is turned off to avoid electric shock and damage to the module. Secondly, regularly check the status of the module and the network. If any abnormal indicators are found, promptly diagnose and troubleshoot according to the manual. Additionally, keep the module clean and free from dust and dirt, and perform regular firmware updates to ensure the module operates at its best.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide the sales and technical support for IC695PBM300 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you.
