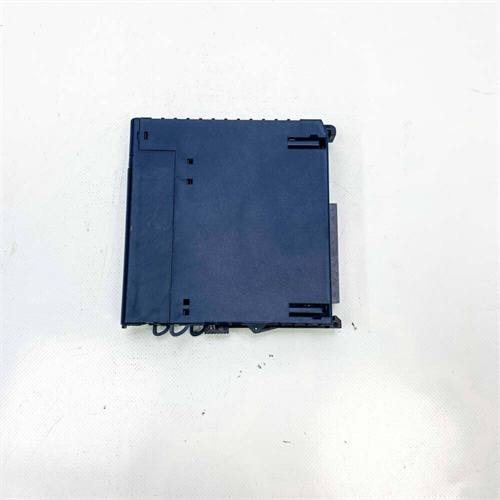

IC695PBM300

Description

Parameters and specifications
Communication capability: Supports communication with up to 125 DP slaves, each supporting data transfer sizes of 244 bytes in and 244 bytes out.
Data transfer rate: All standard data rates are supported, including 9.6 kBit/s, 19.2 kBit/s, 93.75 kBit/s, 187.5 kBit/s, 500 kBit/s, 1.5 MBit/s, 3 MBit/s, 6 MBit/s, and 12 MBit/s.
Status information: Provides status information such as slave status bit array table, network diagnostic counter, DP master diagnostic counter, firmware module revision, and slave diagnostic address.
Firmware: Comes with upgradable firmware that is received indirectly via the host controller via the WinLoader software utility.
series
Series: Part of Emerson Automation’s PACSystems RX3i Programmable Automation controller (PAC) family.
trait
Communication capability: Allows the RX3i CPU to send and receive data over the PROFIBUS-DP network.
Compatibility: Requires an RX3i CPU with firmware version 2.9 or later and must be located in the RX3i universal backplane.
Configuration requirements: Machine Edition 5.0 SP2 Logic Developer-PLC or later is required.
LED indicator: Profibus OK ED indicator, network indicator and MOD status indicator.
Operating conditions: Must operate in a temperature range of 0 to 60 degrees Celsius, and the module storage temperature is -40 to 85 degrees Celsius.
effect
The IC695PBM300 is used as a Profibus DP master module for data exchange and communication with up to 125 DP slave stations, supporting the data transmission needs of industrial automation and control systems.
