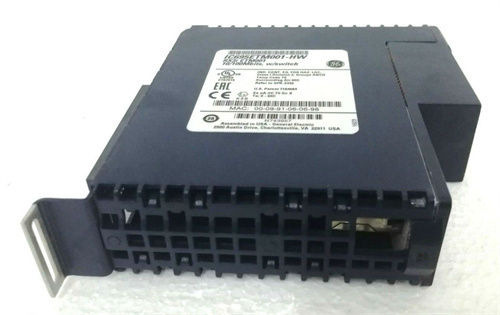

IC695ETM001-EH

Description

effect
Communication: Enables PACSystem to communicate with other controller platforms such as the 90 Series and VersaMax controllers.
Data exchange: Supports regular data exchange through EGD.
TCP/IP communication: Supports SRTP and Modbus TCP communication.
PLC configuration and programming: with PLC configuration and programming functions.
Diagnostics and site management: Provides diagnostic and site management tools.

trait
Hot swap: Supports insertion when power is available or the processor is in running mode.
Time synchronization: Supports time synchronization through the SNTP time server.
LED status indicator: Ethernet status indicator, LAN status indicator, log clearing indicator, single port and speed LED status indicator.
Station Manager function: Can be accessed via serial port and Ethernet connection to provide monitoring access.
Security: Provides password security.

Parameters and specifications
Type: Ethernet module, commonly used for communication in industrial automation and control systems.
Transmission rate:
10/100 Mbps transmission rate is supported.
Some information indicates that IC695ETM001-EH may support higher transfer rates (such as 1000 Mbit/s), but this does not match the description of the standard IC695ETM001 and may be a parameter of a different model or an upgraded version.
Ports: Has two (2) RJ45 Ethernet ports.
Protocol support:
Supports the Layer 4 TCP/IP protocol stack.
The SRTP (Service Request Transport Protocol), Modbus TCP, and EGD (Ethernet Global Data) protocols can be executed.
Processor speed: Ethernet processor speed is 200 MHz.
RS-232 Serial port: Supports data transfer rates from 1200 bps to 115200 bps.
