Description
Parameters and specifications:
Communication rate: 10/100 Mbps transmission rate is supported.
Communication protocol: Ethernet /IP.
Supported chip: FPGA.
Ethernet processor speed: 200 MHz.
Data transfer rate (RS-232 serial port) : Support 1200 bps to 115200 bps.
Size and weight:
Dimensions: 125mm x 72mm x 138mm.
Weight: 0.5kg.
Features:

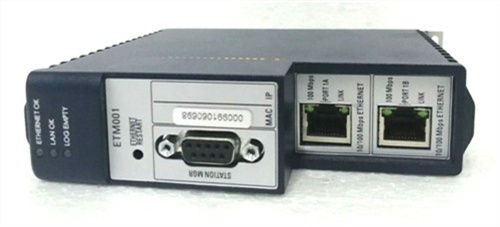

Number of ports: Two-port Ethernet transmitter module.
Auto-negotiation: Supports auto-negotiation, sensing, speed and cross detection.
Communication capabilities: Capable of executing Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols.
Time synchronization: Can be used to synchronize time with the SNTP time server over Ethernet TCP/IP.
Station management function: Access through serial port and Ethernet connection, providing monitoring access, password security and other functions.
Hot swap: Support for plugging in while energized, even when the processor is in RUN mode.
Functions:
enables PACSystem to communicate with other controller platforms such as the 90 Series and VersaMax controllers.
The module is mainly used for data acquisition, communication and transmission, and is suitable for industrial control field.
