Description
Parameters and specifications:
Working voltage: 24VDC
Operating temperature: -40℃ to 70℃
Operating humidity: 5% to 95%
Communication speed: 100Mbps
Communication protocol: Ethernet /IP
Supported chip: FPGA
Product specifications: Size 125mm x 72mm x 138mm, weight 0.5kg
Case material: metal
Mounting method: DIN rail mounting
Applicable model: RX3i controller
Transmission rate: 10/100 Mbps transmission rate and automatic negotiation function
Ethernet processor speed: 200 MHz
Size and weight:
Dimensions: 125mm x 72mm x 138mm
Weight: 0.5kg
Series:

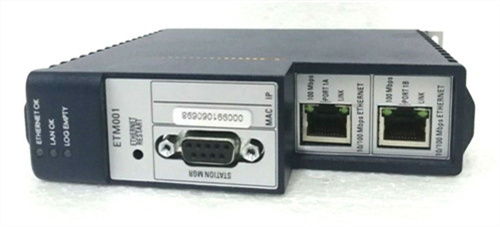

The IC695ETM001 is an Ethernet interface module of GE Fanuc RX3i series.
Features:
Communication function: Communicate with other devices through Ethernet /IP protocol to achieve data collection, transmission and other functions
Technical specifications: Using FPGA technology, support 100Mbps communication rate, with high data transmission efficiency and stability
Multi-protocol support: The ability to execute Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols over the Layer 4 TCP/IP(Internet) stack
Configuration flexibility: Has embedded switches that can be configured for automatic negotiation, detection, speed and cross detection
Time synchronization: Can be used to synchronize time with the SNTP time server over Ethernet TCP/IP
Interface: In addition to the Ethernet interface, there are RS-001 serial ports
LED indicator: Equipped with LED status indicators such as Ethernet OK, LAN OK, LOG empty, single port and speed LED status indicator
Hot-swappable: Support for plugging on power, even when the processor is in RUN mode, but firmware revision 2.51 is required
Functions:
The IC695ETM001 Ethernet interface module connects the PACSystems RX3i to Ethernet, enabling the RX3i controller to communicate with other PACSystems devices as well as the 90 Series and VersaMax controllers.
The module is suitable for industrial control field and can be used for data acquisition, communication transmission and so on.
