Description
Parameters and specifications:
Working voltage: 24VDC
Operating temperature: -40℃ to 70℃
Operating humidity: 5% to 95%
Communication rate: 10/100 Mbps transmission rate and automatic negotiation function are supported
Communication protocol: Ethernet /IP
Supported chip: FPGA
Ethernet processor speed: 200 MHz
Size and weight:
Dimensions: 125mm x 72mm x 138mm
Weight: 0.5kg
Series:

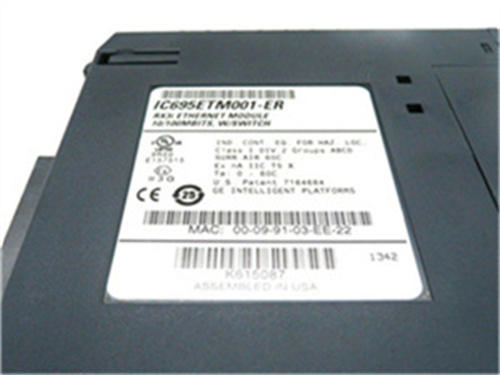

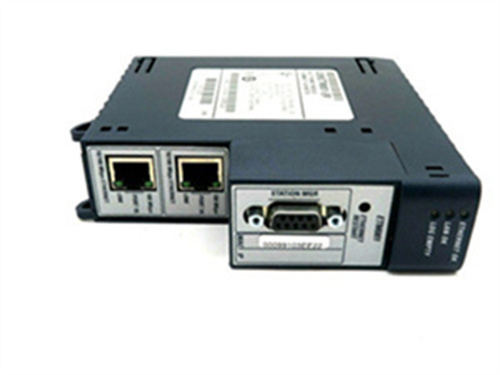

The IC695ETM001 is part of the GE Fanuc RX3i family.
Features:
Connection mode: Communicates with other devices through Ethernet /IP protocol to achieve data collection and transmission.
Transport protocols: Support SRTP (Service Request Transport Protocol), Modbus TCP, and Ethernet Global Data (EGD) protocols.
Speed detection: Can detect the speed and the type of cable connected.
Hot swap: Support for plugging in while energized, even when the processor is in RUN mode.
Interface: With RS-232 serial port, supporting data rates from 1200 bps to 115,200 bps.
Diagnostic and workstation management tools: Provide password security, monitoring statistics, logs, and configuration parameters.
Functions:
IC695ETM001 Ethernet module is mainly used in the field of industrial control, such as data acquisition, communication and transmission. It enables the PACSystems RX3i controller to communicate with other PACSystems devices as well as the 90 Series and VersaMax controllers. In addition, it supports periodic data exchange over Ethernet global data, and EGD commands are executed to read and write controllers.
