Description
Parameters and specifications
Brand: GE (General Electric)
Series: RX3i PACSystems series
Working voltage: 24VDC
Operating temperature: -40℃ to 70℃
Operating humidity: 5% to 95%
Communication speed: 100Mbps
Communication protocol: Ethernet /IP
Supported chip: FPGA
Dimensions: 125mm x 72mm x 138mm
Weight: 0.5kg
Case material: metal
Mounting method: DIN rail mounting
Ethernet processor speed: 200 MHz
trait
Communication capability: Communicate with other devices through Ethernet /IP protocol to achieve data collection, transmission and other functions.
Transmission rate: 10/100 Mbps transmission rate and automatic negotiation function.

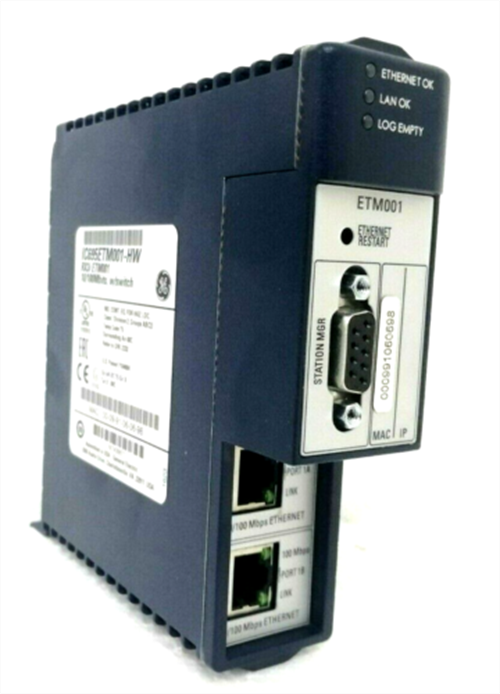

Diagnostic tools: Equipped with LED status indicators such as Ethernet OK, LAN OK, LOG empty, single port and speed LED status indicators.
Hot swap: Support for plugging in while energized, even when the processor is in RUN mode.
Multi-protocol support: Ability to execute Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols.
Time synchronization: Supports time synchronization through the SNTP time server.
