IC695CRU320

Description

argument
Processor: The controller is equipped with a 1 GHz CPU and uses an Intel Celeron-M microprocessor.
Memory: 64 MB of non-volatile flash memory and 64 MB of battery-operated random access memory (RAM).
Power requirements: +3.3 volts DC 1.0 amp nominal value, +5 volts DC 1.2 amp nominal value.
Operating temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), but in some sources it is mentioned that the operating temperature range may be wider, such as -40 ° C to 85 ° C.
specification
Processing speed: 1 GHZ.
Floating-point arithmetic: Supported.
Time clock accuracy: Maximum drift of 2 seconds per day.
Embedded communication: Support for RS-232, RS-485 (RS-486 in some sources).
Supported serial protocols: Modbus RTU slave, SNP, Serial I/O.
Blocks: Up to 512 blocks, with a maximum block size of 128KB.
Size and weight
Dimensions: In some of the materials mentioned dimensions 170mm x 105mm x 32mm, the weight is about 120g, but please note that this may be different from the actual product packaging or bare machine size. Another source mentions a size of 40 x 40 x 30 (possibly referring to the chassis size).
Weight: Depending on the data, the weight may be 2 kg or 3.5 kg
trait
Hot standby redundancy: Supports hot standby redundancy. You can set and configure two RX3i CPUs to perform the same functions to ensure high system availability and reliability.
Scalability: Support for local and remote expansion racks, compatible with expansion modules in the 90-30 series I/O product family.
Development environment: Use Proficy Machine Edition, a common development environment for all GE Fanuc controllers designed to create, run, and diagnose operator interface, motion, and control applications.

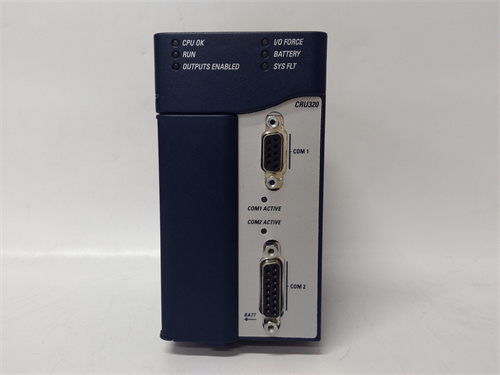

Indicators and ports: The chassis design has all LED indicators and two serial ports facing forward for easy operation and viewing. Indicators include CPU normal, running, output enable, I/O force, battery, and system fault indicators.
