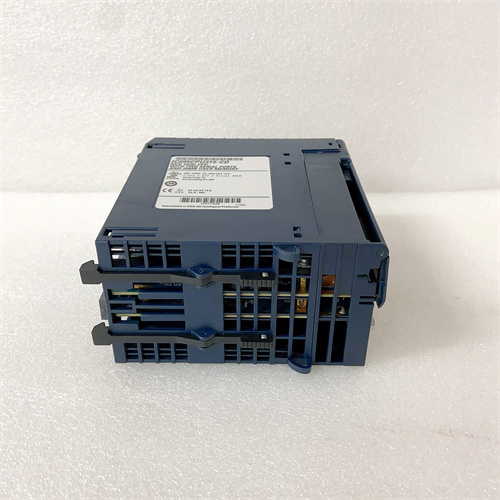

IC695CPU315-CD

Description

specification
Structure: modular
Installation method: Installation in control room
Program capacity: Large capacity
Firmware version: V2.9
Size and weight
Size: 175mm × 120mm × 35mm (according to the latest information), it is also said to be 121212mm (may refer to a certain part or older model)
Weight: 1.11 pounds (about 0.5kg)

series
It belongs to GE’s RX3i series
trait
High performance: Provides powerful processing power and advanced features to support a variety of automation applications
Modular design: allows flexible combinations according to specific application requirements
Real-time operation: It has the ability of real-time operation, which is suitable for applications with high real-time requirements
Large memory capacity: Used to store user programs, data, and systems

argument
Model: IC695CPU315-CD
Compatibility: GE Fanuc series 90-30 PLC
Power supply: 24V DC
Communication interface: Ethernet, RS-485, RS-232
Memory: 64KB RAM and 1MB Flash
Processor speed: 100MHz
I/O points: up to 4096
Operating temperature: -40°C to 70°C
LD instruction processor: hard PLC
I/O operation speed: up to 32K times per second
Boolean execution speed: 0.047 milliseconds per 1000 Boolean instructions
