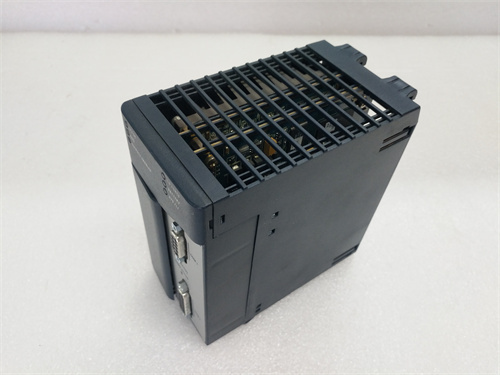

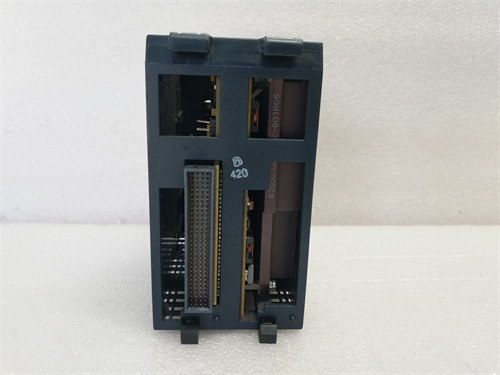

IC695CPU315

Description

argument
Processor: GE Fanuc PACSystems RX3i series of 1 GHz central processing unit, using Intel Celeron-M microprocessor.
User memory: 20 MB (also known as random access memory or RAM).
Flash memory: 20 MB.
I/O operations: Capable of up to 32K I/O operations per second.
Block support: Up to 512 blocks are supported, with a maximum size of 128 KB for each block.
specification
Communication interface: two front ports, one RS-485 serial port and one RS-232 serial port.
Supported protocols: SNP, Serial I/O, Modbus Slave and master serial protocols.
Power requirements: At 5 volts DC, the rated current consumption of the module is 1.2 amps; At 3.3 volts DC, it’s 1 amp.
dimension
Size: One source mentions the specification as 262524mm, but please note that this may not be the exact 3D size of the CPU module, but rather some form of outer packaging or mounting size. Another source mentions the specification as 263,529mm, which again could be the outer package or mounting size. Specific three-dimensional dimensions may need to refer to the manufacturer’s official data.
weight
Weight: 1.24kg (according to one particular source), but please note that this may vary by manufacturer and specific model.
series
Series: IC695CPU315 belongs to the GE Fanuc PACSystems RX3i series.
trait
Programming ability: Can program in C or three of the five programming languages recognized by the IEC (International Electrotechnical Commission), including ladder logic (ladder diagram), structured text or functional block diagram language.
Firmware upgrade: Firmware can be upgraded within the system.
Automatic positioning symbol variables: Allows any amount of user memory to be used, up to 20 MB of user memory.
Power management and protection: with power management function, can monitor the power status and power load, provide power failure detection and alarm function; At the same time, it has a variety of hardware protection functions, including overcurrent protection, overheat protection, short circuit protection and so on.
Hot swap: Supports module insertion and removal when the system is running.
effect
The IC695CPU315 is a powerful central processing unit (CPU) module designed for real-time control of machines, processes and material handling systems. It is widely used in industrial automation and control systems to achieve real-time control of machines and processes in factories.
