Description
Parameters and specifications:
It has an Intel Celeron (Pentium III) microprocessor with 10 MB RAM and 10 MB flash memory.
Three different Serial protocols are supported (Modbus RTU Slave, SNP, and Serial I/O).
The CPU itself supports up to 512 blocks, each with a maximum size of 128 KB.
The typical execution speed is 0.195 ms /1000 Boolean instructions.
It comes with up to 10 MB of battery-powered RAM and 10 MB of non-volatile flash memory.
Support for floating-point data formats.
There is an internal day clock that drifts up to 2 seconds per day and has an internal timing accuracy of up to 0.01%.
Operating temperature range is 0 to 60 degrees Celsius.
Supports RS-232/RS-485 interfaces.
Series:

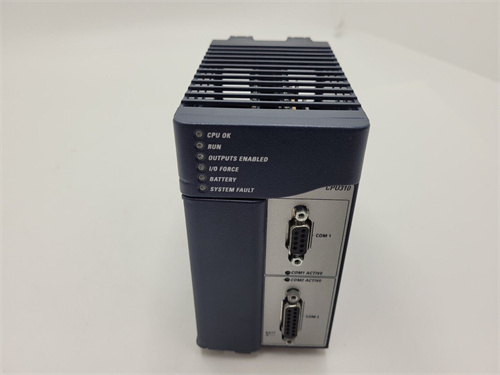

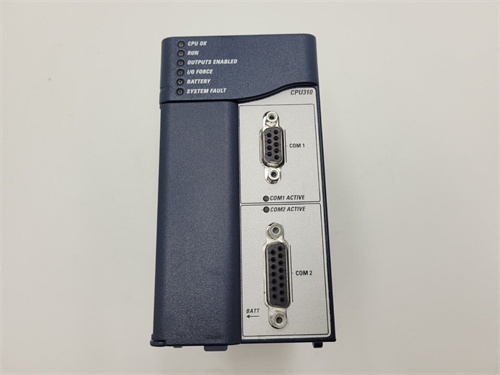

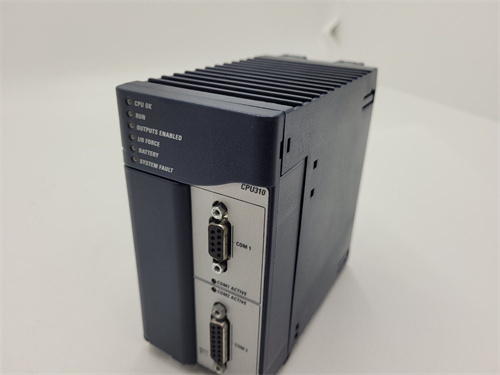

The IC695CPU310-FT is a CPU module manufactured by GE Fanuc Automation as part of the RX3i PACSystems product line.
Features:
With two embedded serial ports (RS-232 and RS-485) facing the front of the chassis.
Eight leds on the front of the case allow you to see the system status at a glance.
Support for floating-point data formats.
It can be programmed through ladder diagrams, structured text, function block diagrams, or the C programming language.
The dual backplane bus architecture supports RX3i PCI and GE Fanuc series Type 90-30 serial buses.
Functions:
The IC695CPU310-FT is part of a PLC (Programmable Logic Controller) for real-time control of machines, processes and material handling systems.
It communicates with other devices through serial ports and I/O (input/output) modules to collect data, execute control logic, and output control signals.
It can communicate with HMI (Human Machine interface) devices, enabling users to monitor and control the production process.
