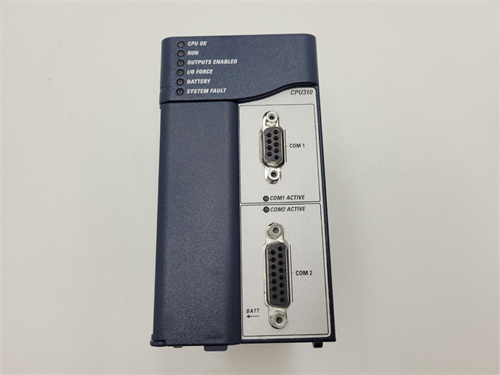

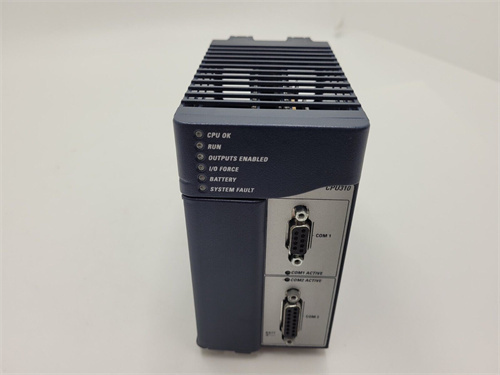

IC695CPU310

Description

Parameters:

CPU type: Intel Celeron (Pentium III) microprocessor
Memory: 10 MB RAM
Flash memory: 10 MB
Serial ports: RS-232 and RS-485
Communication protocols: Support Modbus RTU Slave, SNP, and Serial I/O protocols
Block support: Up to 512 blocks, each block with a maximum size of 128 KB
Programming language: ladder diagram, structured text, functional block diagram or C language
Technical specifications: 1.25 amp rated current at 3.3 volts DC, 1 amp running at 5 volts DC
Operating temperature range: 0 to 60 degrees Celsius
Execution speed: Typical execution speed is 0.195 ms /1000 Boolean instructions
Floating-point data format: Supported
Internal timing accuracy: maximum 0.01%

Functions:

The IC695CPU310 is a CPU module in the GE Fanuc PACSystem RX3i series, which is mainly used in industrial automation and control systems to provide logical execution, calculation and communication capabilities for the system
It can replace the traditional relay, execution logic, timing, counting and other sequential control functions to establish a flexible remote control system
Widely used in various industrial automation fields, such as manufacturing, energy management, building automation, etc
