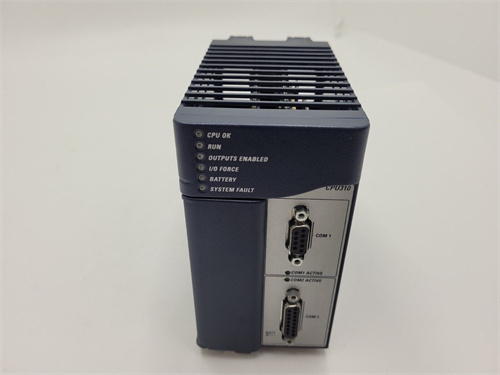

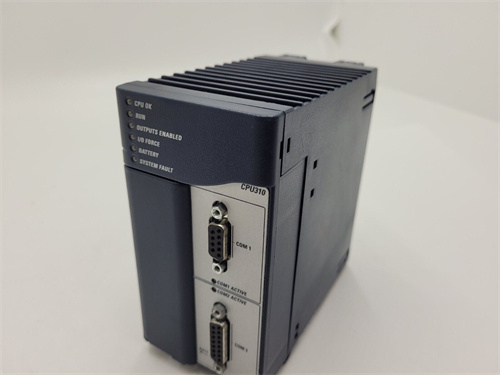

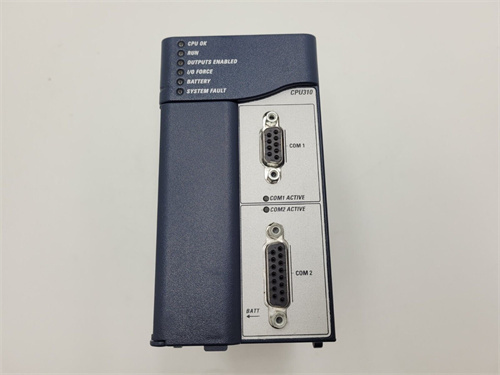

IC695CPU310

Description

trait
Serial communication: Has a pair of embedded serial ports for RS-232 and RS-485 communication, supporting Modbus RTU Slave, SNP, and Serial I/O protocols.
System status indicator: Eight leds on the front of the case are used to indicate system status, such as CPU, battery, and communication channel operation.
Dual backplane bus architecture: Support RX3i PCI and GE Fanuc series 90-30 serial bus use.
Electrical standards: Designed to meet PCI 2.2 standards.
Firmware upgrade: Has system firmware that allows upgrades to enable advanced features.
effect
The IC695CPU310, as the central processing unit of the RX3i series, is the core component of the PLC (Programmable logic Controller) system. It is responsible for executing control procedures, processing input signals, and generating output signals to control various industrial equipment and processes.
Programmed and configured by programming software, the IC695CPU310 enables real-time control of machines, processes and material handling systems for automated production and management.

Parameters and specifications
Processor speed: 300 MHz
Memory: 10 MB RAM and 10 MB flash
Microprocessor: Intel Celeron (Pentium III)
Block support: Up to 512 blocks are supported, with a maximum size of 128 KB for each block
Programming language: Support ladder diagram, structured text, function block diagram and C language
Execution speed: Typical execution speed is 0.195 ms /1000 Boolean instructions
Internal clock: With an internal daytime clock with a maximum deviation of 2 seconds per day and an internal timing accuracy of up to 0.01%
Size and weight
Size: The specific size is not directly given, but usually the PLC module is more compact and easy to install. In the description of similar products, such as the IC695CMU310, the size may be expressed in centimeters (such as 21cm long), but the specific value should be referred to the official data.
Weight: The specific weight is not directly mentioned, but usually the PLC module is light in weight and easy to handle and install. In the description of similar products, such as the IC695CPU310, the weight may range from 0.2kg to 1.26kg.
